Protein Data Bank Entry:

PDB ID : 4biw

Resolution :2.850 Å

Experimental Method : X-ray

Deposition Date : 2013-04-13

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Sensor histidine kinase CpxA
ID:	CPXA_ECOLI
AC:	P0AE82
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	5 %
B	95 %

Ligand binding site composition:

B-Factor:	99.999
Number of residues:	41
Including
Standard Amino Acids:	40
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.836	462.375

% Hydrophobic	% Polar
52.55	47.45
According to VolSite

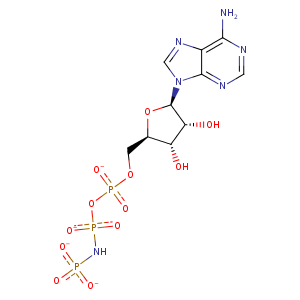

Ligand :

HET Code:	ANP
Formula:	C10H13N6O12P3
Molecular weight:	502.164 g/mol
DrugBank ID:	-
Buried Surface Area:	77.54 %
Polar Surface area:	322.68 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
30.3974	-50.1825	-8.10103

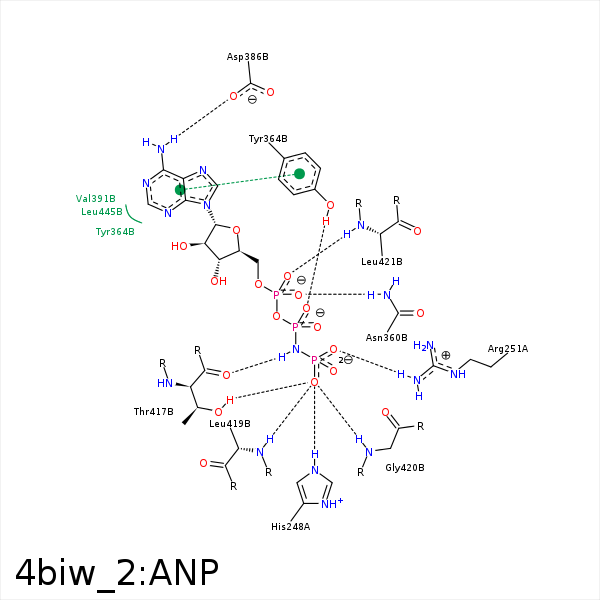

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1G	NE2	HIS- 248	2.69	151.71	H-Bond (Protein Donor)	false
O3G	NE2	HIS- 248	3.49	132.02	H-Bond (Protein Donor)	false
O3G	CZ	ARG- 251	3.41	0	Ionic (Protein Cationic)	false
O2A	ND2	ASN- 360	2.93	135.97	H-Bond (Protein Donor)	false
O1B	OH	TYR- 364	2.82	171.67	H-Bond (Protein Donor)	false
C2'	CZ	TYR- 364	3.83	0	Hydrophobic	false
N6	OD2	ASP- 386	3.14	155.01	H-Bond (Ligand Donor)	false
C1'	CG2	VAL- 391	4.16	0	Hydrophobic	false
C4'	CG2	ILE- 399	4.32	0	Hydrophobic	false
C1'	CG2	ILE- 399	4.15	0	Hydrophobic	false
O2B	CZ	ARG- 405	3.22	0	Ionic (Protein Cationic)	false
O2'	N	THR- 406	3.46	159.92	H-Bond (Protein Donor)	false
C2'	CB	ALA- 409	4.1	0	Hydrophobic	false
O1G	OG1	THR- 417	3.1	165.2	H-Bond (Protein Donor)	false
O3G	OG1	THR- 417	3.37	129.47	H-Bond (Protein Donor)	false
N3B	O	THR- 417	3.09	158.8	H-Bond (Ligand Donor)	false
O1G	N	LEU- 419	3.13	141.84	H-Bond (Protein Donor)	false
O1G	N	GLY- 420	3.27	154.84	H-Bond (Protein Donor)	false
O2G	N	GLY- 420	3.48	121.37	H-Bond (Protein Donor)	false
O1A	N	LEU- 421	2.77	170.97	H-Bond (Protein Donor)	false
C5'	CD1	LEU- 421	4.29	0	Hydrophobic	false
O2G	MG	MG- 502	2.21	0	Metal Acceptor	false
