scPDB - 2v5v entry

Protein Data Bank Entry:

PDB ID : 2v5v

Resolution :1.880 Å

Experimental Method : X-ray

Deposition Date : 2007-07-10

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Flavodoxin
ID:	FLAV_NOSSO
AC:	P0A3E0
Organism:	Nostoc sp.
Reign:	Bacteria
TaxID:	1168
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	35.443
Number of residues:	34
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	0
Water Molecules:	3
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.545	317.250

% Hydrophobic	% Polar
46.81	53.19
According to VolSite

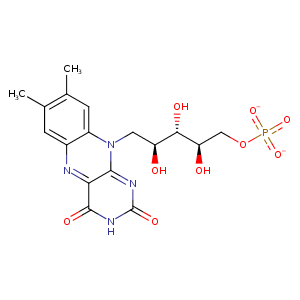

Ligand :

HET Code:	FMN
Formula:	C17H19N4O9P
Molecular weight:	454.328 g/mol
DrugBank ID:	DB03247
Buried Surface Area:	66.01 %
Polar Surface area:	217.05 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	4
Rings:	3
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
17.8673	-10.2574	59.076

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1P	N	GLN- 11	2.74	156.14	H-Bond (Protein Donor)	false
O1P	N	THR- 12	3.03	166.37	H-Bond (Protein Donor)	false
O2P	OG1	THR- 12	2.69	158.67	H-Bond (Protein Donor)	false
O2P	N	THR- 12	3.44	128.36	H-Bond (Protein Donor)	false
O2P	N	LYS- 14	3.04	158.77	H-Bond (Protein Donor)	false
O3P	OG1	THR- 15	2.81	156.54	H-Bond (Protein Donor)	false
O3P	N	THR- 15	2.98	162.79	H-Bond (Protein Donor)	false
C5'	CB	PRO- 55	3.85	0	Hydrophobic	false
O2'	O	THR- 56	2.64	156.21	H-Bond (Ligand Donor)	false
O4	N	GLY- 60	2.94	136.4	H-Bond (Protein Donor)	false
C4'	CB	THR- 88	4.04	0	Hydrophobic	false
O4'	OG1	THR- 88	2.83	149.92	H-Bond (Ligand Donor)	false
N1	N	ASP- 90	3.28	159.13	H-Bond (Protein Donor)	false
O2	N	ASP- 90	3.44	143.26	H-Bond (Protein Donor)	false
C1'	CB	ASP- 90	3.59	0	Hydrophobic	false
C7M	CZ	TYR- 94	4.47	0	Hydrophobic	false
C1'	CD2	TYR- 94	4.45	0	Hydrophobic	false
C6	CZ	TYR- 94	3.23	0	Hydrophobic	false
N3	O	ASN- 97	2.95	173.2	H-Bond (Ligand Donor)	false
O2	N	GLN- 99	3.19	163.68	H-Bond (Protein Donor)	false
O3'	OD2	ASP- 146	3.1	171.37	H-Bond (Ligand Donor)	false
O4'	O	HOH- 2073	2.79	179.96	H-Bond (Protein Donor)	false
