scPDB - 2dbq entry

Protein Data Bank Entry:

PDB ID : 2dbq

Resolution :1.700 Å

Experimental Method : X-ray

Deposition Date : 2005-12-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Glyoxylate reductase
ID:	GYAR_PYRHO
AC:	O58320
Organism:	Pyrococcus horikoshii
Reign:	Archaea
TaxID:	70601
EC Number:	1.1.1.26

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	13.440
Number of residues:	46
Including
Standard Amino Acids:	44
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.430	675.000

% Hydrophobic	% Polar
37.00	63.00
According to VolSite

Ligand :

HET Code:	NAP
Formula:	C21H25N7O17P3
Molecular weight:	740.381 g/mol
DrugBank ID:	DB03461
Buried Surface Area:	63.76 %
Polar Surface area:	405.54 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	5
Rings:	5
Aromatic rings:	3
Anionic atoms:	4
Cationic atoms:	1
Rule of Five Violation:	2
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
39.5276	67.7174	92.7477

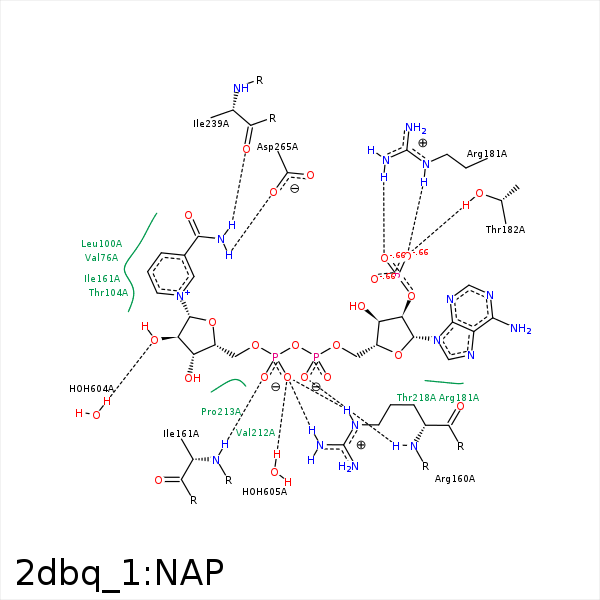

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3D	CG1	VAL- 76	4.04	0	Hydrophobic	false
C5N	CG1	VAL- 76	3.27	0	Hydrophobic	false
C5N	CD1	LEU- 100	4.08	0	Hydrophobic	false
C4N	CG2	THR- 104	3.48	0	Hydrophobic	false
O1A	N	ARG- 160	2.79	176.19	H-Bond (Protein Donor)	false
O3	NH2	ARG- 160	3.38	124.95	H-Bond (Protein Donor)	false
O2N	NE	ARG- 160	2.76	155.04	H-Bond (Protein Donor)	false
O2N	NH2	ARG- 160	3.06	136.06	H-Bond (Protein Donor)	false
O1A	CZ	ARG- 160	3.47	0	Ionic (Protein Cationic)	false
O2N	CZ	ARG- 160	3.33	0	Ionic (Protein Cationic)	false
O1N	N	ILE- 161	2.99	174.12	H-Bond (Protein Donor)	false
C5N	CD1	ILE- 161	3.38	0	Hydrophobic	false
N3A	N	ARG- 181	3.07	123.5	H-Bond (Protein Donor)	false
O2X	NH2	ARG- 181	2.79	167.18	H-Bond (Protein Donor)	false
O3X	NE	ARG- 181	2.93	173.82	H-Bond (Protein Donor)	false
O2X	CZ	ARG- 181	3.72	0	Ionic (Protein Cationic)	false
O3X	CZ	ARG- 181	3.7	0	Ionic (Protein Cationic)	false
O3X	OG1	THR- 182	2.83	171.48	H-Bond (Protein Donor)	false
C1B	CG1	VAL- 212	4.11	0	Hydrophobic	false
C5B	CG	PRO- 213	4.49	0	Hydrophobic	false
C3D	CB	PRO- 213	4.39	0	Hydrophobic	false
N7N	O	ILE- 239	2.84	161.98	H-Bond (Ligand Donor)	false
N7N	OD2	ASP- 265	2.9	158.55	H-Bond (Ligand Donor)	false
O2D	O	HOH- 604	2.91	170.48	H-Bond (Protein Donor)	false
O2N	O	HOH- 605	2.98	180	H-Bond (Protein Donor)	false
