Protein Data Bank Entry:

PDB ID : 1lon

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2002-05-06

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Adenylosuccinate synthetase isozyme 1
ID:	PURA1_MOUSE
AC:	P28650
Organism:	Mus musculus
Reign:	Eukaryota
TaxID:	10090
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	28.797
Number of residues:	51
Including
Standard Amino Acids:	40
Non Standard Amino Acids:	3
Water Molecules:	8
Cofactors:	GDP
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.561	472.500

% Hydrophobic	% Polar
34.29	65.71
According to VolSite

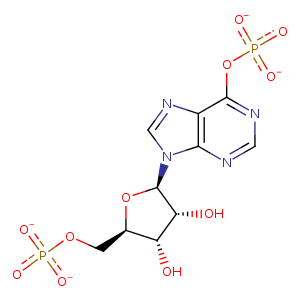

Ligand :

HET Code:	IMO
Formula:	C10H10N4O11P2
Molecular weight:	424.154 g/mol
DrugBank ID:	DB03510
Buried Surface Area:	80.09 %
Polar Surface area:	257.75 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	2
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
6.76867	7.72656	36.3097

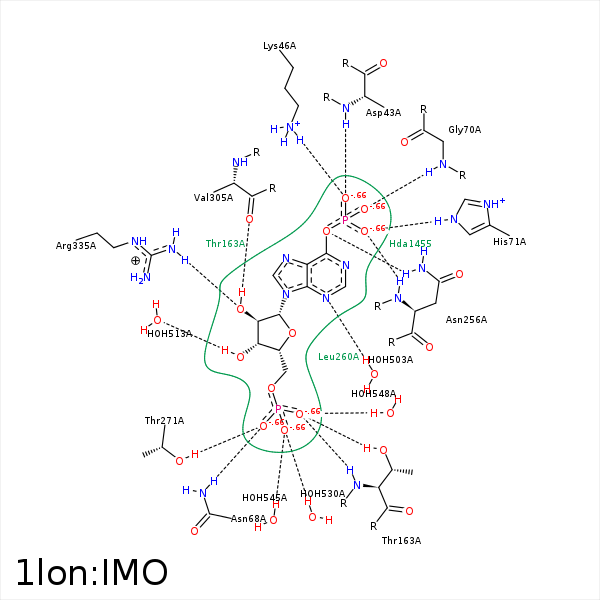

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3	N	ASP- 43	2.88	160.75	H-Bond (Protein Donor)	false
O2	NZ	LYS- 46	3.62	0	Ionic (Protein Cationic)	false
O3	NZ	LYS- 46	2.55	0	Ionic (Protein Cationic)	false
O3	NZ	LYS- 46	2.55	163.23	H-Bond (Protein Donor)	false
O3A	ND2	ASN- 68	2.83	159.92	H-Bond (Protein Donor)	false
O1	N	GLY- 70	2.87	167.14	H-Bond (Protein Donor)	false
C5'	CG2	ILE- 160	4.1	0	Hydrophobic	false
C5'	CG2	THR- 162	4.24	0	Hydrophobic	false
C2'	CG2	THR- 163	4.43	0	Hydrophobic	false
O1A	OG1	THR- 163	2.79	176.32	H-Bond (Protein Donor)	false
O1A	N	THR- 163	2.89	164.64	H-Bond (Protein Donor)	false
O2	N	ASN- 256	2.77	165.07	H-Bond (Protein Donor)	false
O6	ND2	ASN- 256	3.14	140.64	H-Bond (Protein Donor)	false
C1'	CD2	LEU- 260	3.9	0	Hydrophobic	false
C4'	CD2	LEU- 260	4.32	0	Hydrophobic	false
C5'	CB	THR- 271	4.32	0	Hydrophobic	false
O3A	OG1	THR- 271	2.73	164.73	H-Bond (Protein Donor)	false
O2'	NH2	ARG- 335	2.96	129.34	H-Bond (Protein Donor)	false
N3	O	HOH- 503	2.72	147.96	H-Bond (Protein Donor)	false
O3'	O	HOH- 513	2.65	146.39	H-Bond (Ligand Donor)	false
O2A	O	HOH- 530	2.73	179.95	H-Bond (Protein Donor)	false
O2A	O	HOH- 545	2.87	158.35	H-Bond (Protein Donor)	false
O1A	O	HOH- 548	2.78	179.98	H-Bond (Protein Donor)	false
O1	MG	MG- 1454	2	0	Metal Acceptor	false
