scPDB - 4ein entry

Protein Data Bank Entry:

PDB ID : 4ein

Resolution :1.750 Å

Experimental Method : X-ray

Deposition Date : 2012-04-05

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Thymidylate synthase
ID:	TYSY_MOUSE
AC:	P07607
Organism:	Mus musculus
Reign:	Eukaryota
TaxID:	10090
EC Number:	2.1.1.45

Chains:

Chain Name:	Percentage of Residues within binding site
A	10 %
B	90 %

Ligand binding site composition:

B-Factor:	28.509
Number of residues:	30
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.253	1252.125

% Hydrophobic	% Polar
44.20	55.80
According to VolSite

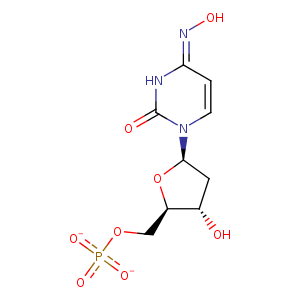

Ligand :

HET Code:	NOH
Formula:	C9H11N3O8P
Molecular weight:	320.173 g/mol
DrugBank ID:	-
Buried Surface Area:	65.65 %
Polar Surface area:	179.45 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	2
Rings:	2
Aromatic rings:	0
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
114.989	-29.0841	15.4762

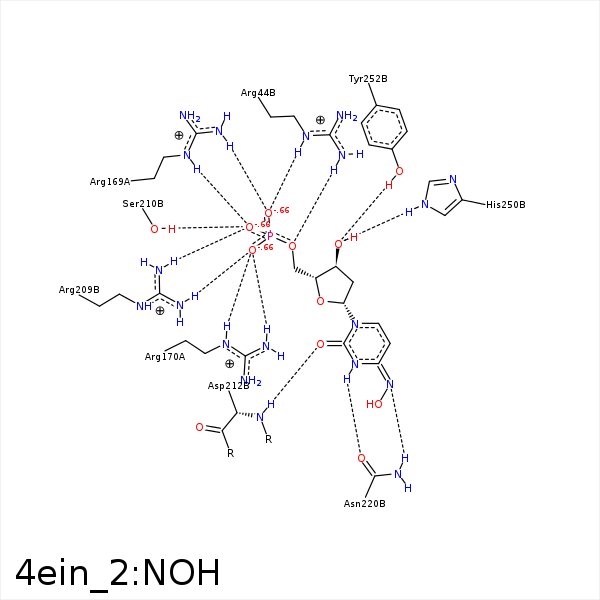

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O5'	NH2	ARG- 44	3.06	163.88	H-Bond (Protein Donor)	false
OP1	NE	ARG- 44	3.11	157.25	H-Bond (Protein Donor)	false
OP1	NH2	ARG- 44	3.45	138.05	H-Bond (Protein Donor)	false
OP1	CZ	ARG- 44	3.73	0	Ionic (Protein Cationic)	false
O5'	NH2	ARG- 169	3.42	131.01	H-Bond (Protein Donor)	false
OP1	NE	ARG- 169	3.22	138.79	H-Bond (Protein Donor)	false
OP1	NH2	ARG- 169	2.77	163.12	H-Bond (Protein Donor)	false
OP3	NE	ARG- 169	3.11	134.6	H-Bond (Protein Donor)	false
OP1	CZ	ARG- 169	3.45	0	Ionic (Protein Cationic)	false
OP3	CZ	ARG- 169	3.88	0	Ionic (Protein Cationic)	false
OP2	NE	ARG- 170	2.74	151	H-Bond (Protein Donor)	false
OP2	NH2	ARG- 170	2.89	138.17	H-Bond (Protein Donor)	false
OP2	CZ	ARG- 170	3.24	0	Ionic (Protein Cationic)	false
C5'	SG	CYS- 189	3.9	0	Hydrophobic	false
C2'	SG	CYS- 189	3.87	0	Hydrophobic	false
OP2	NH2	ARG- 209	2.92	154.18	H-Bond (Protein Donor)	false
OP2	NH1	ARG- 209	3.33	134.26	H-Bond (Protein Donor)	false
OP3	NH1	ARG- 209	2.99	149.82	H-Bond (Protein Donor)	false
OP2	CZ	ARG- 209	3.56	0	Ionic (Protein Cationic)	false
OP3	CZ	ARG- 209	3.86	0	Ionic (Protein Cationic)	false
C2'	CB	SER- 210	4.12	0	Hydrophobic	false
OP3	OG	SER- 210	2.53	165.71	H-Bond (Protein Donor)	false
O2	N	ASP- 212	2.98	167.63	H-Bond (Protein Donor)	false
C1'	CB	ASP- 212	3.62	0	Hydrophobic	false
N3	OD1	ASN- 220	3.01	168.75	H-Bond (Ligand Donor)	false
N4	ND2	ASN- 220	3.03	126.59	H-Bond (Protein Donor)	false
O3'	NE2	HIS- 250	2.67	174.2	H-Bond (Protein Donor)	false
O3'	OH	TYR- 252	2.77	140	H-Bond (Protein Donor)	false
