scPDB - 4a4l entry

Protein Data Bank Entry:

PDB ID : 4a4l

Resolution :2.350 Å

Experimental Method : X-ray

Deposition Date : 2011-10-17

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Serine/threonine-protein kinase PLK1
ID:	PLK1_HUMAN
AC:	P53350
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.21

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	39.428
Number of residues:	36
Including
Standard Amino Acids:	35
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.766	560.250

% Hydrophobic	% Polar
50.60	49.40
According to VolSite

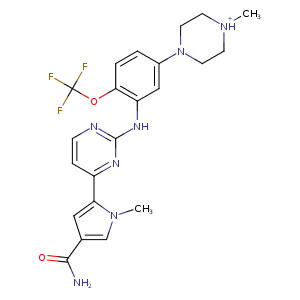

Ligand :

HET Code:	939
Formula:	C22H25F3N7O2
Molecular weight:	476.475 g/mol
DrugBank ID:	-
Buried Surface Area:	63.51 %
Polar Surface area:	102.74 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	3
Rings:	4
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
10.6794	46.3921	9.48385

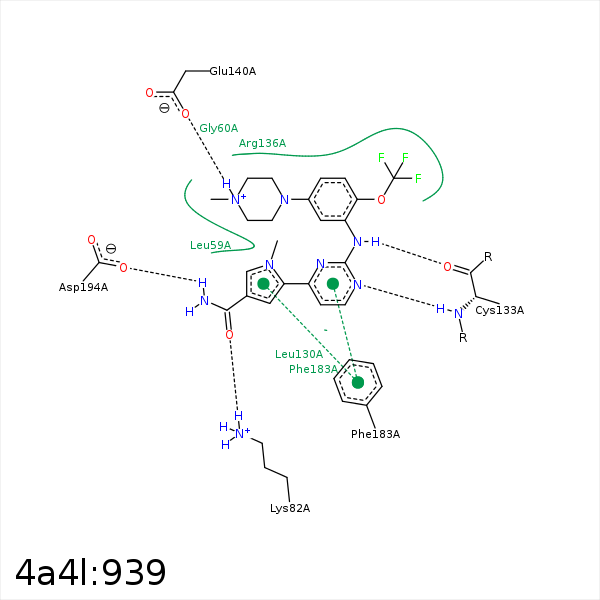

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C16	CD1	LEU- 59	4.35	0	Hydrophobic	false
C19	CB	LEU- 59	4.27	0	Hydrophobic	false
C27	CB	LEU- 59	4.36	0	Hydrophobic	false
C18	CD2	LEU- 59	3.8	0	Hydrophobic	false
F24	CD2	LEU- 59	3.59	0	Hydrophobic	false
C27	SG	CYS- 67	3.91	0	Hydrophobic	false
C5	CB	ALA- 80	3.89	0	Hydrophobic	false
O15	NZ	LYS- 82	2.62	162.26	H-Bond (Protein Donor)	false
C5	CG1	VAL- 114	4.49	0	Hydrophobic	false
C5	CD1	LEU- 130	4.23	0	Hydrophobic	false
F26	CD2	LEU- 132	3.68	0	Hydrophobic	false
N1	N	CYS- 133	2.98	167.95	H-Bond (Protein Donor)	false
N7	O	CYS- 133	3.09	136.8	H-Bond (Ligand Donor)	false
F26	CG	ARG- 134	4.31	0	Hydrophobic	false
F25	CG	ARG- 136	4	0	Hydrophobic	false
C29	CB	ARG- 136	4.44	0	Hydrophobic	false
C19	CD	ARG- 136	3.84	0	Hydrophobic	false
C20	CB	ARG- 136	4	0	Hydrophobic	false
C29	CB	SER- 137	3.52	0	Hydrophobic	false
N31	OE1	GLU- 140	3.68	0	Ionic (Ligand Cationic)	false
N31	OE2	GLU- 140	2.68	0	Ionic (Ligand Cationic)	false
N31	OE2	GLU- 140	2.68	162.34	H-Bond (Ligand Donor)	false
C27	CE2	PHE- 183	4.1	0	Hydrophobic	false
C29	CE2	PHE- 183	3.7	0	Hydrophobic	false
N14	OD2	ASP- 194	2.66	128.53	H-Bond (Ligand Donor)	false
