Protein Data Bank Entry:

PDB ID : 3pd4

Resolution :2.400 Å

Experimental Method : X-ray

Deposition Date : 2010-10-22

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Threonine--tRNA ligase
ID:	SYT_PYRAB
AC:	Q9UZ14
Organism:	Pyrococcus abyssi
Reign:	Archaea
TaxID:	272844
EC Number:	6.1.1.3

Chains:

Chain Name:	Percentage of Residues within binding site
A	96 %
B	4 %

Ligand binding site composition:

B-Factor:	29.010
Number of residues:	27
Including
Standard Amino Acids:	26
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.257	425.250

% Hydrophobic	% Polar
59.52	40.48
According to VolSite

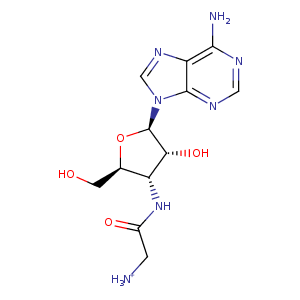

Ligand :

HET Code:	A3G
Formula:	C12H18N7O4
Molecular weight:	324.316 g/mol
DrugBank ID:	-
Buried Surface Area:	74.62 %
Polar Surface area:	176.05 Å2

Number of
H-Bond Acceptors:	8
H-Bond Donors:	5
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	4

Mass center Coordinates

X	Y	Z
11.9964	4.97852	-15.8575

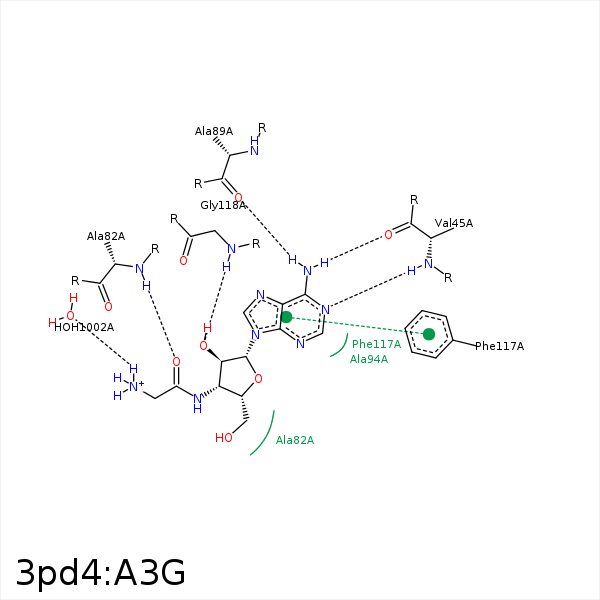

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5'	CB	ALA- 19	3.42	0	Hydrophobic	false
C5'	CG	LEU- 20	4.48	0	Hydrophobic	false
N1	N	VAL- 45	3.17	150.22	H-Bond (Protein Donor)	false
N6	O	VAL- 45	2.97	173.06	H-Bond (Ligand Donor)	false
C2'	CB	PRO- 80	4.08	0	Hydrophobic	false
O	N	ALA- 82	2.65	140.7	H-Bond (Protein Donor)	false
N6	O	ALA- 89	3.2	137.68	H-Bond (Ligand Donor)	false
C1'	CE1	PHE- 117	3.53	0	Hydrophobic	false
O2'	N	GLY- 118	3.07	167.66	H-Bond (Protein Donor)	false
N	O	TYR- 119	3.33	133.42	H-Bond (Ligand Donor)	false
N	OE1	GLU- 134	3.65	0	Ionic (Ligand Cationic)	false
N	O	HOH- 1002	2.69	169.59	H-Bond (Ligand Donor)	false
