scPDB - 3gg2 entry

Protein Data Bank Entry:

PDB ID : 3gg2

Resolution :1.700 Å

Experimental Method : X-ray

Deposition Date : 2009-02-27

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Sugar dehydrogenase, UDP-glucose/GDP-mannose dehydrogenase family
ID:	Q7MVC7_PORGI
AC:	Q7MVC7
Organism:	Porphyromonas gingivalis
Reign:	Bacteria
TaxID:	242619
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	5 %
B	95 %

Ligand binding site composition:

B-Factor:	24.875
Number of residues:	49
Including
Standard Amino Acids:	43
Non Standard Amino Acids:	0
Water Molecules:	6
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.369	482.625

% Hydrophobic	% Polar
50.35	49.65
According to VolSite

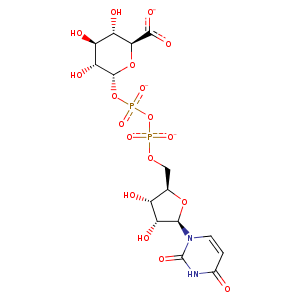

Ligand :

HET Code:	UGA
Formula:	C15H19N2O18P2
Molecular weight:	577.261 g/mol
DrugBank ID:	DB03041
Buried Surface Area:	74.82 %
Polar Surface area:	336.72 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	3
Aromatic rings:	0
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	9

Mass center Coordinates

X	Y	Z
41.7876	61.8626	60.6448

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O2	O	HOH- 26	2.71	155.95	H-Bond (Protein Donor)	false
O'Q	OH	TYR- 88	2.57	140.93	H-Bond (Protein Donor)	false
O'P	OE2	GLU- 232	3.43	138.32	H-Bond (Protein Donor)	false
O'Q	OE2	GLU- 232	2.69	165.47	H-Bond (Protein Donor)	false
O4'	O	LEU- 234	2.69	164.1	H-Bond (Ligand Donor)	false
C3'	CG	LYS- 235	3.74	0	Hydrophobic	false
O'P	NZ	LYS- 288	2.99	150.43	H-Bond (Protein Donor)	false
O'P	NZ	LYS- 288	2.99	0	Ionic (Protein Cationic)	false
O'P	ND2	ASN- 292	3.03	163.84	H-Bond (Protein Donor)	false
C2'	CD1	LEU- 295	4.39	0	Hydrophobic	false
C1D	CD1	ILE- 299	4.11	0	Hydrophobic	false
O2'	NH1	ARG- 328	2.79	159.63	H-Bond (Protein Donor)	false
O3'	NH2	ARG- 328	2.83	165.65	H-Bond (Protein Donor)	false
N3	O	TYR- 335	2.95	172.17	H-Bond (Ligand Donor)	false
O4	N	TYR- 335	2.93	149.96	H-Bond (Protein Donor)	false
C4D	CB	TYR- 340	3.67	0	Hydrophobic	false
C1D	CB	TYR- 340	3.95	0	Hydrophobic	false
O3D	N	GLY- 341	3.17	168.14	H-Bond (Protein Donor)	false
C1'	CB	CYS- 344	4.35	0	Hydrophobic	false
C5'	SG	CYS- 344	3.68	0	Hydrophobic	false
C1'	CE1	PHE- 345	3.61	0	Hydrophobic	false
C5D	CE2	PHE- 345	3.82	0	Hydrophobic	false
C3D	CD1	PHE- 404	3.62	0	Hydrophobic	false
C5D	CE1	PHE- 404	3.92	0	Hydrophobic	false
O1A	NZ	LYS- 405	2.82	157.29	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 405	2.82	0	Ionic (Protein Cationic)	false
C3D	CB	LYS- 405	3.92	0	Hydrophobic	false
O2	NH1	ARG- 495	3.13	122.02	H-Bond (Protein Donor)	false
O2	O	HOH- 542	3.46	154.42	H-Bond (Protein Donor)	false
O3'	O	HOH- 551	2.82	166.58	H-Bond (Ligand Donor)	false
O1B	O	HOH- 597	2.7	179.96	H-Bond (Protein Donor)	false
