scPDB - 3fpk entry

Protein Data Bank Entry:

PDB ID : 3fpk

Resolution :1.700 Å

Experimental Method : X-ray

Deposition Date : 2009-01-05

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Ferredoxin-NADP reductase
ID:	Q8ZKP5_SALTY
AC:	Q8ZKP5
Organism:	Salmonella typhimurium
Reign:	Bacteria
TaxID:	99287
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	20.659
Number of residues:	35
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.693	465.750

% Hydrophobic	% Polar
52.90	47.10
According to VolSite

Ligand :

HET Code:	FAD
Formula:	C27H31N9O15P2
Molecular weight:	783.534 g/mol
DrugBank ID:	DB03147
Buried Surface Area:	55.75 %
Polar Surface area:	381.7 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	7
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
3.84249	-21.5611	20.036

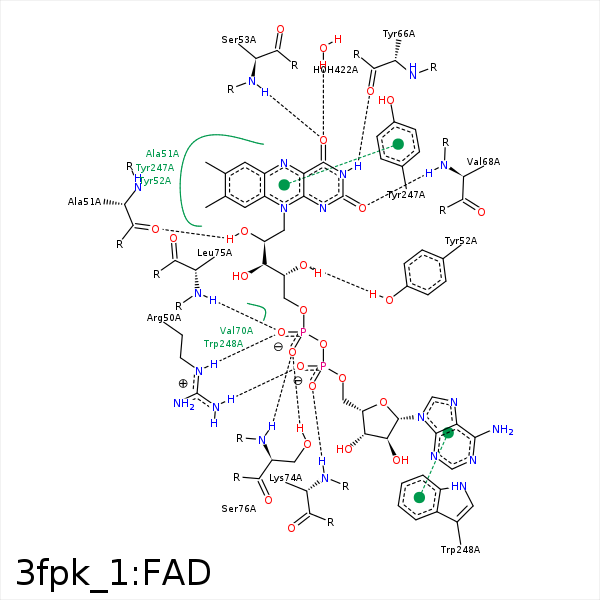

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C6	CB	PHE- 36	4.38	0	Hydrophobic	false
C7M	CD2	PHE- 36	3.45	0	Hydrophobic	false
O1A	CZ	ARG- 50	3.52	0	Ionic (Protein Cationic)	false
O1P	CZ	ARG- 50	3.53	0	Ionic (Protein Cationic)	false
O1A	NH2	ARG- 50	3.12	130.2	H-Bond (Protein Donor)	false
O1A	NE	ARG- 50	3.15	130.45	H-Bond (Protein Donor)	false
O1P	NE	ARG- 50	2.94	128.96	H-Bond (Protein Donor)	false
C3'	CB	ARG- 50	4.1	0	Hydrophobic	false
O2'	O	ALA- 51	2.58	174.62	H-Bond (Ligand Donor)	false
C8	CB	ALA- 51	3.58	0	Hydrophobic	false
O4'	OH	TYR- 52	2.79	138.54	H-Bond (Protein Donor)	false
C2'	CE1	TYR- 52	3.8	0	Hydrophobic	false
O4	N	SER- 53	3.06	148.26	H-Bond (Protein Donor)	false
N5	N	SER- 53	3.28	137.04	H-Bond (Protein Donor)	false
N3	O	TYR- 66	2.69	169.09	H-Bond (Ligand Donor)	false
O2	N	VAL- 68	3.15	153.07	H-Bond (Protein Donor)	false
C5'	CG2	VAL- 70	3.68	0	Hydrophobic	false
O2A	N	LYS- 74	2.8	155.56	H-Bond (Protein Donor)	false
O1P	N	LEU- 75	2.74	167.72	H-Bond (Protein Donor)	false
O2P	OG	SER- 76	2.71	149.68	H-Bond (Protein Donor)	false
O2P	N	SER- 76	2.83	158.22	H-Bond (Protein Donor)	false
C7M	CG	GLU- 245	4.3	0	Hydrophobic	false
C1'	CB	TYR- 247	4.49	0	Hydrophobic	false
C9	CB	TYR- 247	4.03	0	Hydrophobic	false
DuAr	DuAr	TYR- 247	3.87	0	Aromatic Face/Face	false
DuAr	DuAr	TRP- 248	3.8	0	Aromatic Face/Face	false
C2B	CB	TRP- 248	3.56	0	Hydrophobic	false
O4	O	HOH- 422	2.67	148.77	H-Bond (Protein Donor)	false
