scPDB - 2vr1 entry

Protein Data Bank Entry:

PDB ID : 2vr1

Resolution :2.600 Å

Experimental Method : X-ray

Deposition Date : 2008-03-24

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Biotin carboxylase
ID:	ACCC_ECOLI
AC:	P24182
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	6.3.4.14

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	42.538
Number of residues:	39
Including
Standard Amino Acids:	36
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:	CL

Cavity properties

Ligandability	Volume (Å3)
0.609	796.500

% Hydrophobic	% Polar
37.71	62.29
According to VolSite

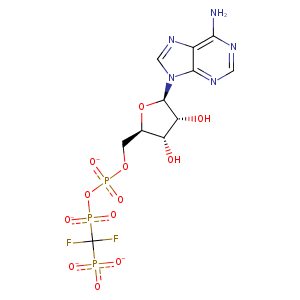

Ligand :

HET Code:	ATF
Formula:	C11H12F2N5O12P3
Molecular weight:	537.157 g/mol
DrugBank ID:	-
Buried Surface Area:	59.38 %
Polar Surface area:	310.64 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
7.57894	-23.0691	22.5382

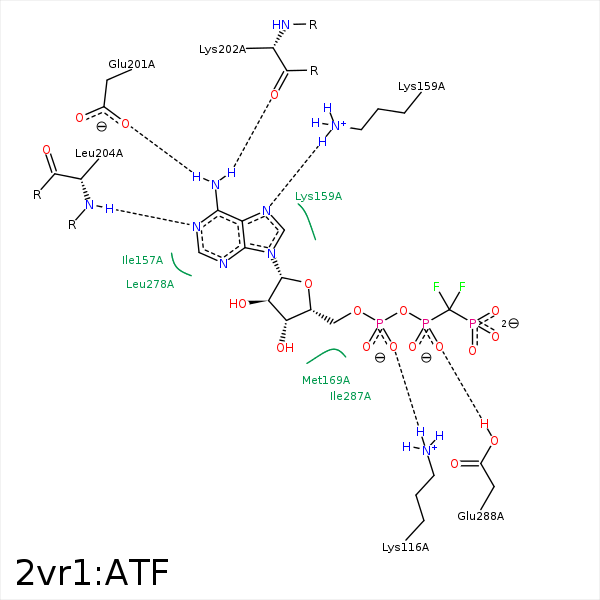

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O2A	NZ	LYS- 116	2.98	168.19	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 116	2.98	0	Ionic (Protein Cationic)	false
N7	NZ	LYS- 159	2.78	135.67	H-Bond (Protein Donor)	false
C4'	CE	MET- 169	4.46	0	Hydrophobic	false
C1'	CE	MET- 169	3.31	0	Hydrophobic	false
N6	OE2	GLU- 201	3.2	167.77	H-Bond (Ligand Donor)	false
N6	O	LYS- 202	2.9	146.98	H-Bond (Ligand Donor)	false
N1	N	LEU- 204	3	170.62	H-Bond (Protein Donor)	false
C2'	CD2	LEU- 278	4.49	0	Hydrophobic	false
C5'	CD1	ILE- 287	4.45	0	Hydrophobic	false
O2B	OE1	GLU- 288	3.02	156.53	H-Bond (Protein Donor)	false
F1B	CG	GLU- 288	4.4	0	Hydrophobic	false
O1G	ND2	ASN- 290	3.34	136.72	H-Bond (Protein Donor)	false
O2G	ND2	ASN- 290	3.41	139.79	H-Bond (Protein Donor)	false
C2'	CD1	ILE- 437	3.68	0	Hydrophobic	false
