scPDB - 2gpv entry

Protein Data Bank Entry:

PDB ID : 2gpv

Resolution :2.850 Å

Experimental Method : X-ray

Deposition Date : 2006-04-18

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Estrogen-related receptor gamma
ID:	ERR3_HUMAN
AC:	P62508
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	92 %
G	8 %

Ligand binding site composition:

B-Factor:	17.337
Number of residues:	36
Including
Standard Amino Acids:	36
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.355	590.625

% Hydrophobic	% Polar
70.29	29.71
According to VolSite

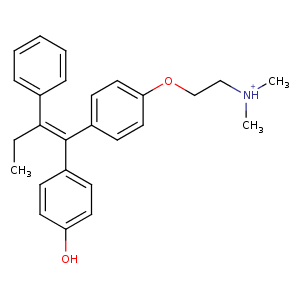

Ligand :

HET Code:	OHT
Formula:	C26H30NO2
Molecular weight:	388.522 g/mol
DrugBank ID:	DB04468
Buried Surface Area:	72.99 %
Polar Surface area:	33.9 Å2

Number of
H-Bond Acceptors:	2
H-Bond Donors:	2
Rings:	3
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
33.1215	5.10097	53.2081

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C15	CD2	LEU- 265	3.76	0	Hydrophobic	false
C9	CD1	LEU- 268	4.27	0	Hydrophobic	false
C16	CD1	LEU- 268	4.19	0	Hydrophobic	false
C22	CB	LEU- 268	3.9	0	Hydrophobic	false
C2	CD2	LEU- 268	3.98	0	Hydrophobic	false
C21	SG	CYS- 269	3.98	0	Hydrophobic	false
C3	CG	LEU- 271	4.07	0	Hydrophobic	false
C23	CB	ALA- 272	3.96	0	Hydrophobic	false
C2	CB	ALA- 272	3.82	0	Hydrophobic	false
C19	CB	ALA- 272	3.53	0	Hydrophobic	false
N24	OD1	ASP- 273	2.62	144.35	H-Bond (Ligand Donor)	false
N24	OD1	ASP- 273	2.62	0	Ionic (Ligand Cationic)	false
N24	OD2	ASP- 273	3.95	0	Ionic (Ligand Cationic)	false
O4	OE2	GLU- 275	2.9	159.74	H-Bond (Ligand Donor)	false
C23	CZ3	TRP- 305	4.04	0	Hydrophobic	false
C12	CE	MET- 306	4.21	0	Hydrophobic	false
C18	CE	MET- 306	3.57	0	Hydrophobic	false
C4	CD2	LEU- 309	3.95	0	Hydrophobic	false
C5	CB	LEU- 309	3.96	0	Hydrophobic	false
C18	CD1	LEU- 309	4.1	0	Hydrophobic	false
C5	CG1	VAL- 313	4.15	0	Hydrophobic	false
O4	NH2	ARG- 316	3.35	148.23	H-Bond (Protein Donor)	false
C10	CZ	TYR- 326	4.35	0	Hydrophobic	false
C9	CE1	TYR- 326	3.57	0	Hydrophobic	false
C16	CD1	LEU- 342	3.95	0	Hydrophobic	false
C15	CD2	LEU- 342	3.75	0	Hydrophobic	false
C10	CD2	LEU- 345	3.4	0	Hydrophobic	false
C13	CD2	LEU- 345	3.76	0	Hydrophobic	false
C10	CD1	ILE- 349	3.8	0	Hydrophobic	false
C12	CB	ALA- 431	4.34	0	Hydrophobic	false
C14	CB	HIS- 434	4.35	0	Hydrophobic	false
C23	CE2	PHE- 435	4.14	0	Hydrophobic	false
C13	CB	PHE- 435	3.75	0	Hydrophobic	false
