scPDB - 1qf4 entry

Protein Data Bank Entry:

PDB ID : 1qf4

Resolution :2.200 Å

Experimental Method : X-ray

Deposition Date : 1999-04-06

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Adenylosuccinate synthetase
ID:	PURA_ECOLI
AC:	P0A7D4
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	30.184
Number of residues:	47
Including
Standard Amino Acids:	41
Non Standard Amino Acids:	2
Water Molecules:	4
Cofactors:	GDP
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.452	563.625

% Hydrophobic	% Polar
38.32	61.68
According to VolSite

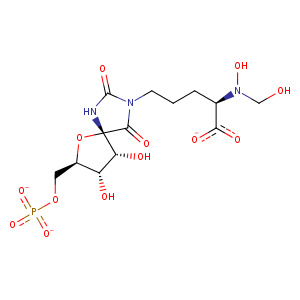

Ligand :

HET Code:	RPD
Formula:	C13H18N3O13P
Molecular weight:	455.268 g/mol
DrugBank ID:	DB02666
Buried Surface Area:	77.48 %
Polar Surface area:	267.99 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	4
Rings:	2
Aromatic rings:	0
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	10

Mass center Coordinates

X	Y	Z
28.515	17.0781	23.0946

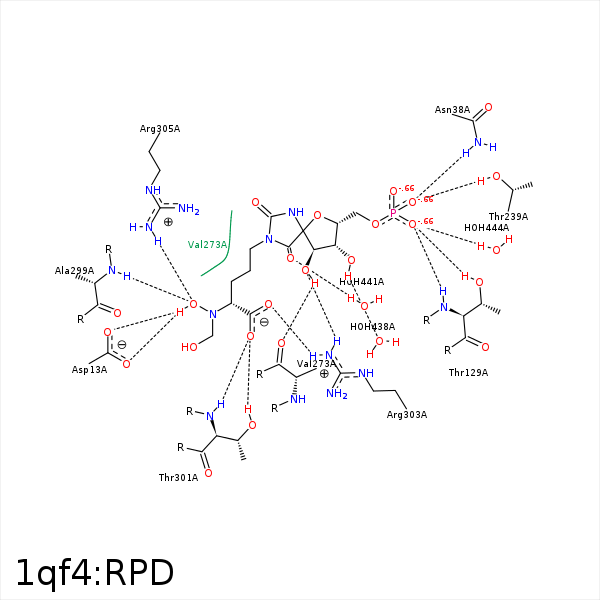

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
OAA	OD1	ASP- 13	3.27	152.56	H-Bond (Ligand Donor)	false
O2P	ND2	ASN- 38	2.7	143.7	H-Bond (Protein Donor)	false
C5'	CG2	ILE- 126	3.91	0	Hydrophobic	false
C5'	CG2	THR- 128	3.94	0	Hydrophobic	false
O3P	OG1	THR- 129	3.04	171.61	H-Bond (Protein Donor)	false
O3P	N	THR- 129	2.92	165.95	H-Bond (Protein Donor)	false
C2'	CG2	THR- 129	3.85	0	Hydrophobic	false
C7A	CG2	THR- 129	4.13	0	Hydrophobic	false
O2P	OG1	THR- 239	2.78	147.13	H-Bond (Protein Donor)	false
C5'	CB	THR- 239	4.39	0	Hydrophobic	false
O2'	O	VAL- 273	3.17	138.7	H-Bond (Ligand Donor)	false
C8A	CG1	VAL- 273	3.47	0	Hydrophobic	false
OAA	N	ALA- 299	3.09	149.82	H-Bond (Protein Donor)	false
CBA	CB	ALA- 299	4.37	0	Hydrophobic	false
OKA	N	THR- 300	3.35	144.53	H-Bond (Protein Donor)	false
CBA	CB	THR- 300	4.26	0	Hydrophobic	false
OKA	N	THR- 301	2.83	147.58	H-Bond (Protein Donor)	false
OKA	OG1	THR- 301	2.62	166.65	H-Bond (Protein Donor)	false
O2'	NH2	ARG- 303	2.72	133.93	H-Bond (Protein Donor)	false
OJA	NH2	ARG- 303	2.65	171.01	H-Bond (Protein Donor)	false
OJA	CZ	ARG- 303	3.57	0	Ionic (Protein Cationic)	false
OAA	NH1	ARG- 305	2.92	137.03	H-Bond (Protein Donor)	false
OBA	MG	MG- 433	2.21	0	Metal Acceptor	false
O3'	O	HOH- 438	2.96	170.76	H-Bond (Ligand Donor)	false
O4	O	HOH- 441	2.62	179.97	H-Bond (Protein Donor)	false
O3P	O	HOH- 444	2.57	179.96	H-Bond (Protein Donor)	false
