scPDB - 4o29 entry

Protein Data Bank Entry:

PDB ID : 4o29

Resolution :2.900 Å

Experimental Method : X-ray

Deposition Date : 2013-12-17

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Protein-L-isoaspartate O-methyltransferase
ID:	PIMT_PYRAE
AC:	Q8ZYN0
Organism:	Pyrobaculum aerophilum
Reign:	Archaea
TaxID:	178306
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	59.628
Number of residues:	39
Including
Standard Amino Acids:	39
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.884	421.875

% Hydrophobic	% Polar
52.80	47.20
According to VolSite

Ligand :

HET Code:	SAH
Formula:	C14H20N6O5S
Molecular weight:	384.411 g/mol
DrugBank ID:	DB01752
Buried Surface Area:	78.45 %
Polar Surface area:	212.38 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
33.2391	40.6615	52.301

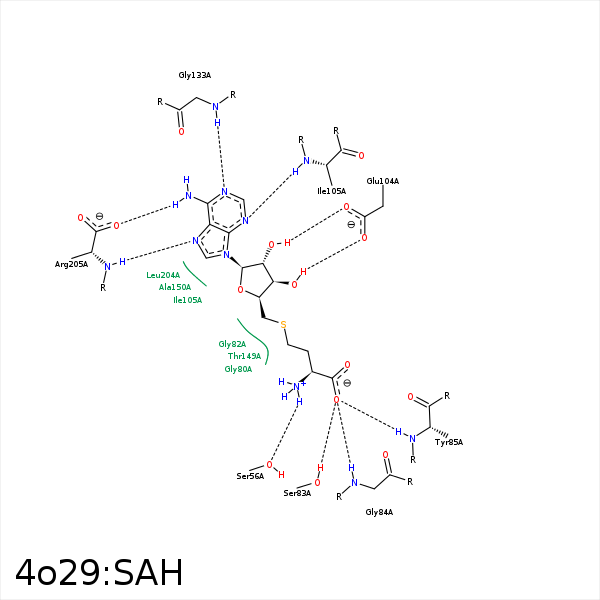

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
SD	CB	ALA- 53	4.4	0	Hydrophobic	false
C3'	CB	ALA- 53	3.78	0	Hydrophobic	false
N	OG	SER- 56	3.14	167.26	H-Bond (Ligand Donor)	false
N	OE2	GLU- 78	3.59	0	Ionic (Ligand Cationic)	false
OXT	O	THR- 81	2.68	172.64	H-Bond (Ligand Donor)	false
OXT	OG	SER- 83	2.92	152.2	H-Bond (Protein Donor)	false
OXT	N	GLY- 84	2.81	128.16	H-Bond (Protein Donor)	false
OXT	N	TYR- 85	3.01	120.73	H-Bond (Protein Donor)	false
O	N	HIS- 86	3.46	140.87	H-Bond (Protein Donor)	false
O3'	OE1	GLU- 104	2.57	164.61	H-Bond (Ligand Donor)	false
O3'	OE2	GLU- 104	3.49	134.22	H-Bond (Ligand Donor)	false
O2'	OE2	GLU- 104	2.83	165.44	H-Bond (Ligand Donor)	false
C1'	CG2	ILE- 105	4.4	0	Hydrophobic	false
N3	N	ILE- 105	3.16	154.35	H-Bond (Protein Donor)	false
C3'	CD1	LEU- 109	4.25	0	Hydrophobic	false
N6	OD1	ASP- 132	3.41	166.72	H-Bond (Ligand Donor)	false
N1	N	GLY- 133	2.76	136.96	H-Bond (Protein Donor)	false
CG	CB	THR- 149	3.84	0	Hydrophobic	false
C5'	CG2	VAL- 202	3.72	0	Hydrophobic	false
N7	N	ARG- 205	3.02	162.6	H-Bond (Protein Donor)	false
N6	OXT	ARG- 205	2.69	121.87	H-Bond (Ligand Donor)	false
