scPDB - 4nt0 entry

Protein Data Bank Entry:

PDB ID : 4nt0

Resolution :1.770 Å

Experimental Method : X-ray

Deposition Date : 2013-11-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Orotidine 5'-phosphate decarboxylase
ID:	PYRF_METTH
AC:	O26232
Organism:	Methanothermobacter thermautotrophicus
Reign:	Archaea
TaxID:	187420
EC Number:	4.1.1.23

Chains:

Chain Name:	Percentage of Residues within binding site
A	85 %
B	15 %

Ligand binding site composition:

B-Factor:	19.915
Number of residues:	28
Including
Standard Amino Acids:	27
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.050	499.500

% Hydrophobic	% Polar
44.59	55.41
According to VolSite

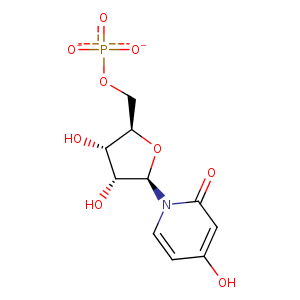

Ligand :

HET Code:	3DU
Formula:	C10H11NO9P
Molecular weight:	320.169 g/mol
DrugBank ID:	-
Buried Surface Area:	59.06 %
Polar Surface area:	175.29 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	2
Rings:	2
Aromatic rings:	0
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	4

Mass center Coordinates

X	Y	Z
5.53662	-0.498476	-12.0138

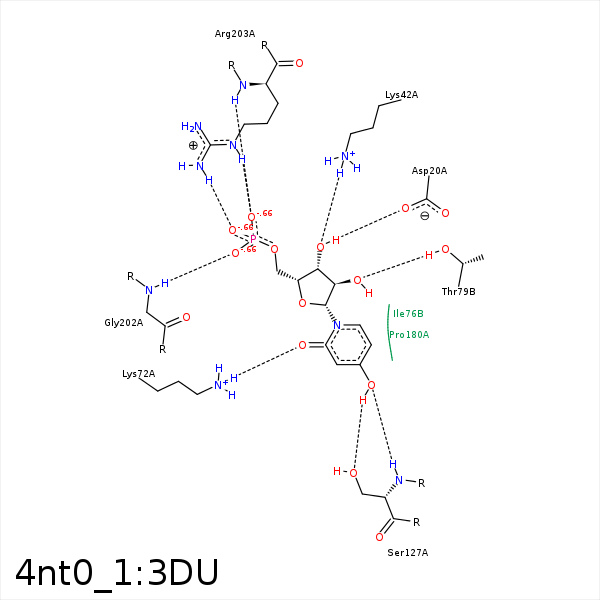

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CB	ALA- 18	3.86	0	Hydrophobic	false
O3'	OD2	ASP- 20	2.64	160.07	H-Bond (Ligand Donor)	false
O3'	NZ	LYS- 42	2.85	160.47	H-Bond (Protein Donor)	false
O2	NZ	LYS- 72	2.66	157.97	H-Bond (Protein Donor)	false
O2'	OD1	ASP- 75	3.36	133.35	H-Bond (Ligand Donor)	false
C2'	CD1	ILE- 76	3.77	0	Hydrophobic	false
O2'	OG1	THR- 79	2.85	150.9	H-Bond (Protein Donor)	false
O4	N	SER- 127	2.73	131.08	H-Bond (Protein Donor)	false
C4'	CG2	ILE- 200	4.49	0	Hydrophobic	false
OP3	N	GLY- 202	2.98	145.41	H-Bond (Protein Donor)	false
OP1	CZ	ARG- 203	3.69	0	Ionic (Protein Cationic)	false
OP2	CZ	ARG- 203	3.86	0	Ionic (Protein Cationic)	false
OP1	NH2	ARG- 203	2.91	164.17	H-Bond (Protein Donor)	false
OP2	N	ARG- 203	2.79	165.17	H-Bond (Protein Donor)	false
OP2	NE	ARG- 203	2.88	162.4	H-Bond (Protein Donor)	false
