scPDB - 4gva entry

Protein Data Bank Entry:

PDB ID : 4gva

Resolution :1.830 Å

Experimental Method : X-ray

Deposition Date : 2012-08-30

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Mitogen-activated protein kinase 1
ID:	MK01_RAT
AC:	P63086
Organism:	Rattus norvegicus
Reign:	Eukaryota
TaxID:	10116
EC Number:	2.7.11.24

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	44.184
Number of residues:	26
Including
Standard Amino Acids:	26
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.401	330.750

% Hydrophobic	% Polar
46.94	53.06
According to VolSite

Ligand :

HET Code:	ADP
Formula:	C10H12N5O10P2
Molecular weight:	424.177 g/mol
DrugBank ID:	-
Buried Surface Area:	43.3 %
Polar Surface area:	260.7 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
-3.61859	16.0396	13.2425

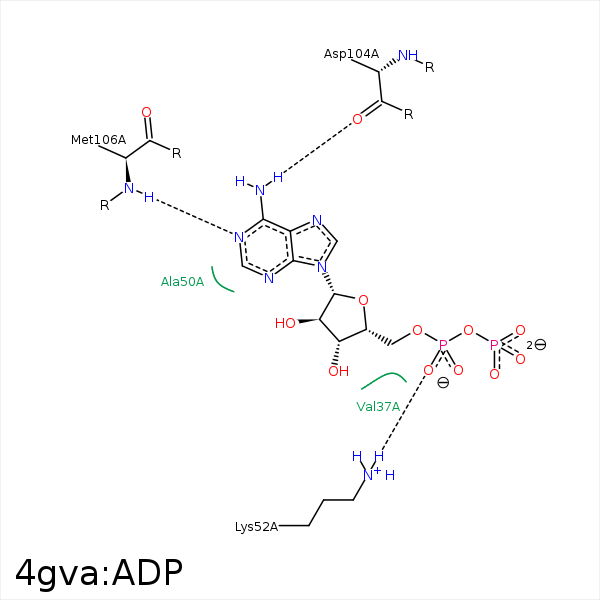

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C1'	CG2	ILE- 29	3.79	0	Hydrophobic	false
C5'	CG2	VAL- 37	3.86	0	Hydrophobic	false
O1A	NZ	LYS- 52	3.32	171.82	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 52	3.43	125.51	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 52	3.32	0	Ionic (Protein Cationic)	false
O2A	NZ	LYS- 52	3.43	0	Ionic (Protein Cationic)	false
N6	O	ASP- 104	3.17	164.84	H-Bond (Ligand Donor)	false
N1	N	MET- 106	3.01	161.42	H-Bond (Protein Donor)	false
