scPDB - 4c3p entry

Protein Data Bank Entry:

PDB ID : 4c3p

Resolution :2.690 Å

Experimental Method : X-ray

Deposition Date : 2013-08-26

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Aurora kinase A
ID:	AURKA_HUMAN
AC:	O14965
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	46.097
Number of residues:	27
Including
Standard Amino Acids:	27
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.758	904.500

% Hydrophobic	% Polar
45.15	54.85
According to VolSite

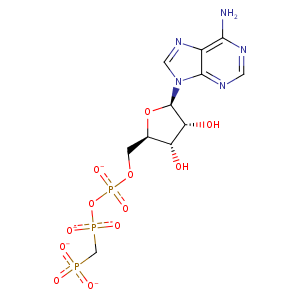

Ligand :

HET Code:	ACP
Formula:	C11H14N5O12P3
Molecular weight:	501.176 g/mol
DrugBank ID:	DB03909
Buried Surface Area:	46.76 %
Polar Surface area:	310.64 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
4.67284	21.2596	-30.3834

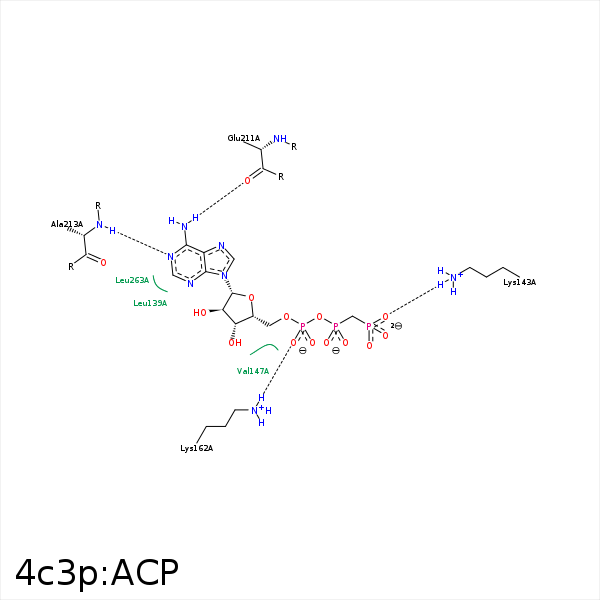

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	NZ	LYS- 143	2.88	149.45	H-Bond (Protein Donor)	false
O1B	N	LYS- 143	3.22	138.47	H-Bond (Protein Donor)	false
O3G	NZ	LYS- 143	2.88	0	Ionic (Protein Cationic)	false
C5'	CG2	VAL- 147	4.19	0	Hydrophobic	false
O2B	NZ	LYS- 162	3.38	137.44	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 162	2.6	146.79	H-Bond (Protein Donor)	false
O2B	NZ	LYS- 162	3.38	0	Ionic (Protein Cationic)	false
O1A	NZ	LYS- 162	2.6	0	Ionic (Protein Cationic)	false
N6	O	GLU- 211	2.96	153.06	H-Bond (Ligand Donor)	false
N1	N	ALA- 213	3.11	167.03	H-Bond (Protein Donor)	false
C2'	CG2	THR- 217	3.97	0	Hydrophobic	false
C2'	CD2	LEU- 263	4.44	0	Hydrophobic	false
