scPDB - 4blr entry

Protein Data Bank Entry:

PDB ID : 4blr

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2013-05-04

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	NTPase P4
ID:	Q94M05_9VIRU
AC:	Q94M05
Organism:	Pseudomonas phage phi12
Reign:	Viruses
TaxID:	161736
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	39 %
C	61 %

Ligand binding site composition:

B-Factor:	26.097
Number of residues:	39
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	0
Water Molecules:	7
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.382	604.125

% Hydrophobic	% Polar
30.17	69.83
According to VolSite

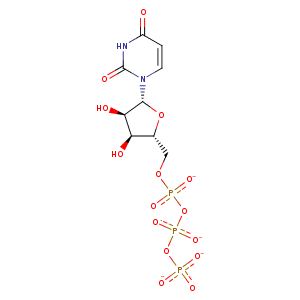

Ligand :

HET Code:	UTP
Formula:	C9H11N2O15P3
Molecular weight:	480.109 g/mol
DrugBank ID:	DB04005
Buried Surface Area:	57.86 %
Polar Surface area:	299.67 Å2

Number of
H-Bond Acceptors:	15
H-Bond Donors:	3
Rings:	2
Aromatic rings:	0
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
32.668	51.7709	26.8346

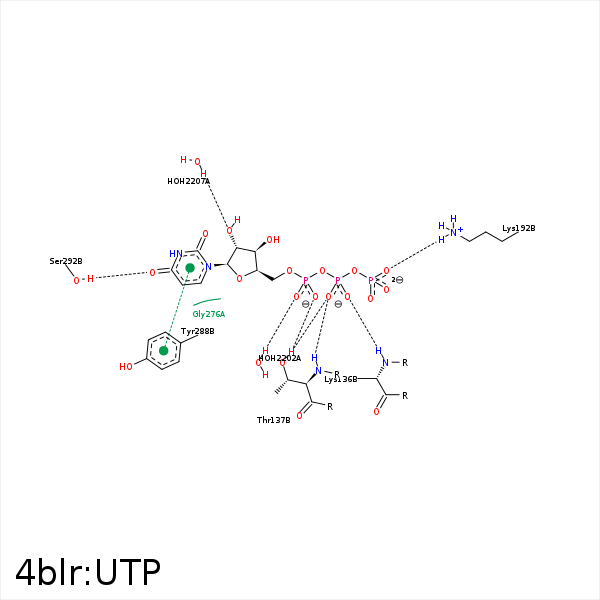

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1B	N	LYS- 136	2.95	167.39	H-Bond (Protein Donor)	false
C5'	CB	THR- 137	4.25	0	Hydrophobic	false
O2A	OG1	THR- 137	2.78	120.76	H-Bond (Protein Donor)	false
O2B	OG1	THR- 137	3	155.1	H-Bond (Protein Donor)	false
O2B	N	THR- 137	3.04	143.6	H-Bond (Protein Donor)	false
C5'	CG	PRO- 138	3.78	0	Hydrophobic	false
O1G	NZ	LYS- 192	3.84	0	Ionic (Protein Cationic)	false
O3G	NZ	LYS- 192	2.78	0	Ionic (Protein Cationic)	false
O3G	NZ	LYS- 192	2.78	159.3	H-Bond (Protein Donor)	false
O1A	CZ	ARG- 272	3.91	0	Ionic (Protein Cationic)	false
O4	OG	SER- 292	2.74	158.45	H-Bond (Protein Donor)	false
O2'	OD1	ASN- 318	3.38	142.63	H-Bond (Ligand Donor)	false
O1A	O	HOH- 2202	2.85	179.97	H-Bond (Protein Donor)	false
O2'	O	HOH- 2207	3.06	179.96	H-Bond (Protein Donor)	false
