Protein Data Bank Entry:

PDB ID : 3uo5

Resolution :2.700 Å

Experimental Method : X-ray

Deposition Date : 2011-11-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Aurora kinase A
ID:	AURKA_HUMAN
AC:	O14965
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	40.594
Number of residues:	27
Including
Standard Amino Acids:	26
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.720	462.375

% Hydrophobic	% Polar
51.09	48.91
According to VolSite

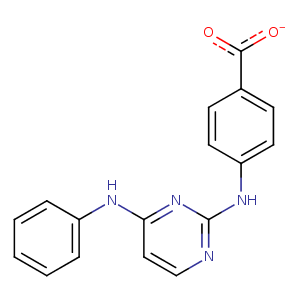

Ligand :

HET Code:	0BX
Formula:	C17H13N4O2
Molecular weight:	305.311 g/mol
DrugBank ID:	-
Buried Surface Area:	62 %
Polar Surface area:	89.97 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	2
Rings:	3
Aromatic rings:	3
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
-4.16217	-31.5262	5.31052

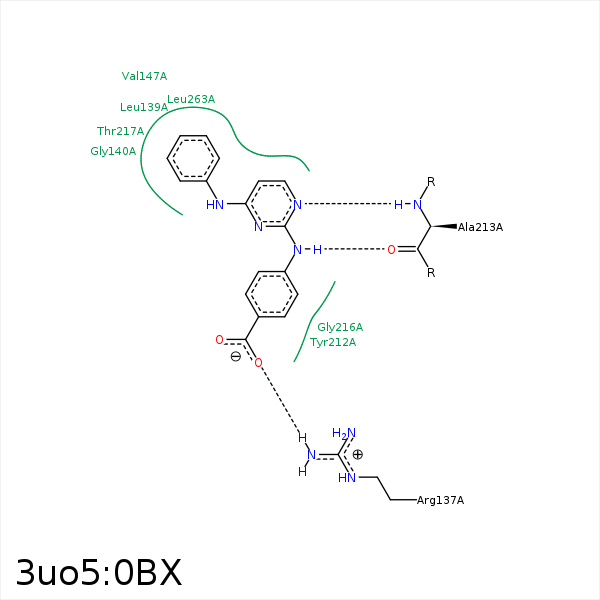

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O22	NH2	ARG- 137	2.85	153.83	H-Bond (Protein Donor)	false
O22	NH1	ARG- 137	3.28	133.2	H-Bond (Protein Donor)	false
O22	CZ	ARG- 137	3.49	0	Ionic (Protein Cationic)	false
C09	CD1	LEU- 139	4.12	0	Hydrophobic	false
C05	CD2	LEU- 139	4.07	0	Hydrophobic	false
C08	CB	LEU- 139	3.97	0	Hydrophobic	false
C21	CB	LEU- 139	3.84	0	Hydrophobic	false
C14	CG1	VAL- 147	4.1	0	Hydrophobic	false
C16	CG2	VAL- 147	4.1	0	Hydrophobic	false
C21	CB	VAL- 147	3.95	0	Hydrophobic	false
C14	CB	ALA- 160	4.05	0	Hydrophobic	false
C14	CD2	LEU- 194	3.79	0	Hydrophobic	false
C14	CD1	LEU- 210	4.49	0	Hydrophobic	false
N01	O	ALA- 213	2.74	147.61	H-Bond (Ligand Donor)	false
N03	N	ALA- 213	3.01	173.19	H-Bond (Protein Donor)	false
C18	CG2	THR- 217	3.44	0	Hydrophobic	false
O22	CZ	ARG- 220	3.83	0	Ionic (Protein Cationic)	false
O23	CZ	ARG- 220	3.54	0	Ionic (Protein Cationic)	false
C14	CD1	LEU- 263	3.65	0	Hydrophobic	false
C08	CD2	LEU- 263	3.74	0	Hydrophobic	false
C17	CD2	LEU- 263	4.18	0	Hydrophobic	false
