scPDB - 3rq6 entry

Protein Data Bank Entry:

PDB ID : 3rq6

Resolution :1.650 Å

Experimental Method : X-ray

Deposition Date : 2011-04-27

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	ADP-dependent (S)-NAD(P)H-hydrate dehydratase
ID:	NNRD_BACSU
AC:	P94368
Organism:	Bacillus subtilis
Reign:	Bacteria
TaxID:	224308
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	25.086
Number of residues:	45
Including
Standard Amino Acids:	39
Non Standard Amino Acids:	1
Water Molecules:	5
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.759	442.125

% Hydrophobic	% Polar
44.27	55.73
According to VolSite

Ligand :

HET Code:	APR
Formula:	C15H21N5O14P2
Molecular weight:	557.300 g/mol
DrugBank ID:	-
Buried Surface Area:	51.09 %
Polar Surface area:	316.8 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	4
Aromatic rings:	2
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	9

Mass center Coordinates

X	Y	Z
35.4619	24.6985	25.5152

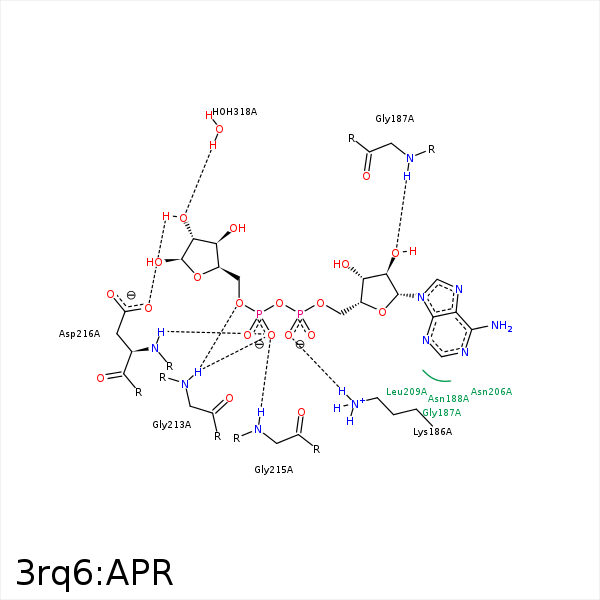

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C2'	CB	LYS- 186	3.8	0	Hydrophobic	false
C3'	CG	LYS- 186	3.75	0	Hydrophobic	false
O1A	NZ	LYS- 186	2.83	171.22	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 186	2.83	0	Ionic (Protein Cationic)	false
O2'	N	GLY- 187	2.83	157.25	H-Bond (Protein Donor)	false
C1'	CB	LEU- 209	3.63	0	Hydrophobic	false
O2B	N	GLY- 213	3.04	123.42	H-Bond (Protein Donor)	false
O5D	N	GLY- 213	2.97	161.38	H-Bond (Protein Donor)	false
C4'	CB	THR- 214	4.1	0	Hydrophobic	false
O3A	N	GLY- 215	3.47	136.6	H-Bond (Protein Donor)	false
O2B	N	GLY- 215	2.82	129.49	H-Bond (Protein Donor)	false
O2B	N	ASP- 216	3.06	154.03	H-Bond (Protein Donor)	false
O2D	OD2	ASP- 216	2.56	163.45	H-Bond (Ligand Donor)	false
O1A	MG	MG- 277	1.99	0	Metal Acceptor	false
O1B	MG	MG- 277	1.92	0	Metal Acceptor	false
O2D	O	HOH- 299	3.33	138.26	H-Bond (Protein Donor)	false
O2D	O	HOH- 318	3.13	138.67	H-Bond (Protein Donor)	false
