Protein Data Bank Entry:

PDB ID : 3iew

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2009-07-23

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
ID:	ISPF_BURPS
AC:	Q63T71
Organism:	Burkholderia pseudomallei
Reign:	Bacteria
TaxID:	272560
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	56 %
B	44 %

Ligand binding site composition:

B-Factor:	32.291
Number of residues:	42
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	1
Water Molecules:	3
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.176	749.250

% Hydrophobic	% Polar
40.09	59.91
According to VolSite

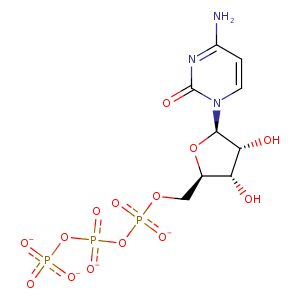

Ligand :

HET Code:	CTP
Formula:	C9H12N3O14P3
Molecular weight:	479.125 g/mol
DrugBank ID:	DB02431
Buried Surface Area:	65 %
Polar Surface area:	308.95 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	3
Rings:	2
Aromatic rings:	0
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
9.53193	-26.9092	-20.5578

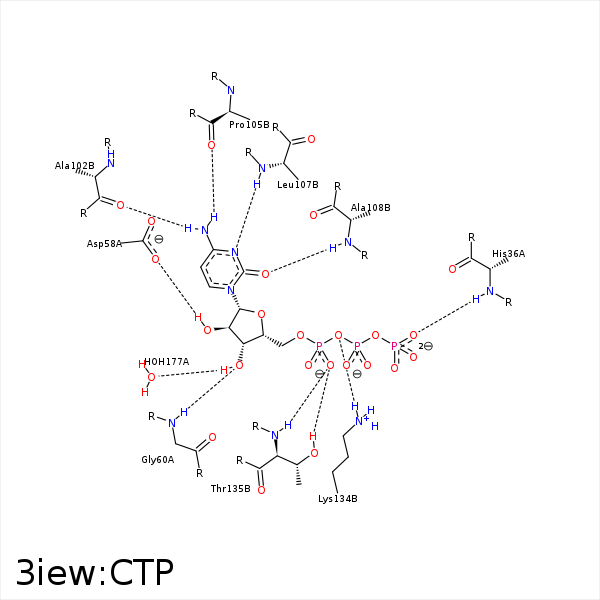

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	N	HIS- 36	3.34	163.71	H-Bond (Protein Donor)	false
O2'	OD1	ASP- 58	2.95	158.27	H-Bond (Ligand Donor)	false
O2'	OD2	ASP- 58	3.31	131.7	H-Bond (Ligand Donor)	false
O3'	N	GLY- 60	3.11	135.28	H-Bond (Protein Donor)	false
N4	O	ALA- 102	2.92	164.95	H-Bond (Ligand Donor)	false
N4	O	PRO- 105	3	126.53	H-Bond (Ligand Donor)	false
N3	N	LEU- 107	3.09	150.1	H-Bond (Protein Donor)	false
O2	N	ALA- 108	2.9	129.43	H-Bond (Protein Donor)	false
C2'	CB	ALA- 133	4.25	0	Hydrophobic	false
O3'	O	ALA- 133	3.34	122.77	H-Bond (Ligand Donor)	false
O2A	NZ	LYS- 134	3.91	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 134	3.95	0	Ionic (Protein Cationic)	false
O2B	NZ	LYS- 134	2.6	0	Ionic (Protein Cationic)	false
O3A	NZ	LYS- 134	3.1	144.68	H-Bond (Protein Donor)	false
O2A	N	THR- 135	3	165.39	H-Bond (Protein Donor)	false
O2A	OG1	THR- 135	3.07	173.65	H-Bond (Protein Donor)	false
O3'	O	HOH- 177	2.73	157.98	H-Bond (Ligand Donor)	false
O2B	ZN	ZN- 801	2.25	0	Metal Acceptor	false
O1G	ZN	ZN- 801	2.71	0	Metal Acceptor	false
