scPDB - 3iah entry

Protein Data Bank Entry:

PDB ID : 3iah

Resolution :1.830 Å

Experimental Method : X-ray

Deposition Date : 2009-07-14

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Putative oxoacyl-(Acyl carrier protein) reductase
ID:	Q7CQG2_SALTY
AC:	Q7CQG2
Organism:	Salmonella typhimurium
Reign:	Bacteria
TaxID:	99287
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	14.469
Number of residues:	53
Including
Standard Amino Acids:	48
Non Standard Amino Acids:	0
Water Molecules:	5
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.816	766.125

% Hydrophobic	% Polar
46.70	53.30
According to VolSite

Ligand :

HET Code:	NAP
Formula:	C21H25N7O17P3
Molecular weight:	740.381 g/mol
DrugBank ID:	DB03461
Buried Surface Area:	75.94 %
Polar Surface area:	405.54 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	5
Rings:	5
Aromatic rings:	3
Anionic atoms:	4
Cationic atoms:	1
Rule of Five Violation:	2
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
28.0811	0.369854	39.8616

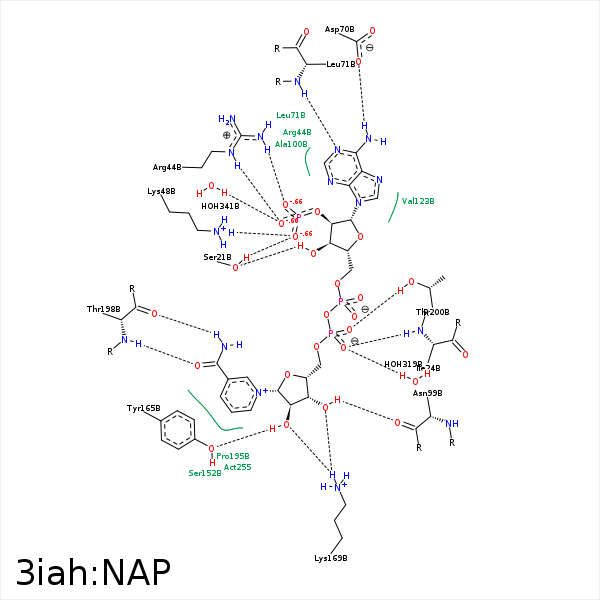

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	OG	SER- 21	2.97	144.32	H-Bond (Ligand Donor)	false
O1X	OG	SER- 21	2.83	157.91	H-Bond (Protein Donor)	false
C3B	CB	ASP- 22	4.42	0	Hydrophobic	false
O1N	N	ILE- 24	2.94	161.24	H-Bond (Protein Donor)	false
C5D	CB	ILE- 24	4.33	0	Hydrophobic	false
C3N	CD1	ILE- 24	4.41	0	Hydrophobic	false
O2X	CZ	ARG- 44	3.84	0	Ionic (Protein Cationic)	false
O2X	NE	ARG- 44	2.97	172.43	H-Bond (Protein Donor)	false
O3X	NH1	ARG- 44	3.2	164.24	H-Bond (Protein Donor)	false
O1X	NZ	LYS- 48	2.78	159.92	H-Bond (Protein Donor)	false
O1X	NZ	LYS- 48	2.78	0	Ionic (Protein Cationic)	false
O3X	NZ	LYS- 48	3.74	0	Ionic (Protein Cationic)	false
N6A	OD2	ASP- 70	3.06	143.62	H-Bond (Ligand Donor)	false
N1A	N	LEU- 71	3.04	159.25	H-Bond (Protein Donor)	false
O3D	O	ASN- 99	2.74	148.46	H-Bond (Ligand Donor)	false
C1B	CB	ALA- 100	4.04	0	Hydrophobic	false
O4B	N	GLY- 101	3.4	157.64	H-Bond (Protein Donor)	false
C4D	CG2	THR- 150	3.93	0	Hydrophobic	false
C5N	CB	SER- 152	3.89	0	Hydrophobic	false
O2D	OH	TYR- 165	2.58	160.06	H-Bond (Ligand Donor)	false
O3D	NZ	LYS- 169	2.95	139.42	H-Bond (Protein Donor)	false
O2D	NZ	LYS- 169	3	137.04	H-Bond (Protein Donor)	false
C5N	CG	PRO- 195	3.82	0	Hydrophobic	false
O7N	N	THR- 198	2.75	158.64	H-Bond (Protein Donor)	false
N7N	O	THR- 198	3.25	146.45	H-Bond (Ligand Donor)	false
O2N	OG1	THR- 200	2.64	171.64	H-Bond (Protein Donor)	false
C5B	CE	MET- 202	4.18	0	Hydrophobic	false
C3D	CE	MET- 202	4.09	0	Hydrophobic	false
C2D	SD	MET- 202	3.67	0	Hydrophobic	false
O1N	O	HOH- 319	2.78	179.98	H-Bond (Protein Donor)	false
