scPDB - 3gd3 entry

Protein Data Bank Entry:

PDB ID : 3gd3

Resolution :2.950 Å

Experimental Method : X-ray

Deposition Date : 2009-02-23

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Apoptosis-inducing factor 1, mitochondrial
ID:	AIFM1_MOUSE
AC:	Q9Z0X1
Organism:	Mus musculus
Reign:	Eukaryota
TaxID:	10090
EC Number:	1.1.1

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	77.279
Number of residues:	55
Including
Standard Amino Acids:	54
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.332	2257.875

% Hydrophobic	% Polar
46.19	53.81
According to VolSite

Ligand :

HET Code:	FAD
Formula:	C27H31N9O15P2
Molecular weight:	783.534 g/mol
DrugBank ID:	DB03147
Buried Surface Area:	72.93 %
Polar Surface area:	381.7 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	7
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
-14.5291	10.5715	11.9671

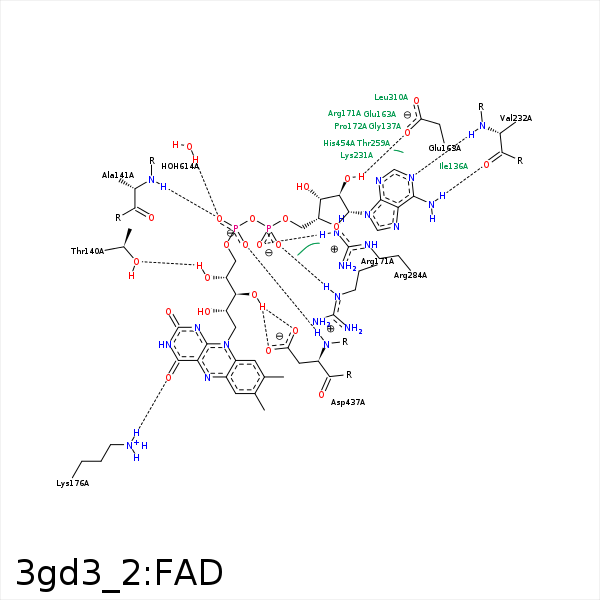

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CB	THR- 140	4.49	0	Hydrophobic	false
O4'	OG1	THR- 140	2.84	166.22	H-Bond (Ligand Donor)	false
O1P	N	ALA- 141	3.21	173.17	H-Bond (Protein Donor)	false
O2B	OE1	GLU- 163	2.69	152.69	H-Bond (Ligand Donor)	false
N3A	N	GLU- 163	3.39	146.72	H-Bond (Protein Donor)	false
C2B	CB	GLU- 163	4.12	0	Hydrophobic	false
O2A	CZ	ARG- 171	3.6	0	Ionic (Protein Cationic)	false
O2A	NH2	ARG- 171	3.28	134.46	H-Bond (Protein Donor)	false
O2A	NE	ARG- 171	3.09	142.42	H-Bond (Protein Donor)	false
C8M	CD	ARG- 171	3.82	0	Hydrophobic	false
C8	CB	ARG- 171	4.01	0	Hydrophobic	false
C7M	CB	LEU- 174	4.19	0	Hydrophobic	false
C7M	CB	SER- 175	3.93	0	Hydrophobic	false
O4	NZ	LYS- 176	2.58	157.79	H-Bond (Protein Donor)	false
N6A	O	VAL- 232	3	163.18	H-Bond (Ligand Donor)	false
N1A	N	VAL- 232	2.99	140.82	H-Bond (Protein Donor)	false
C7M	CE2	PHE- 283	3.72	0	Hydrophobic	false
O1A	CZ	ARG- 284	3.57	0	Ionic (Protein Cationic)	false
O1A	NH2	ARG- 284	2.76	141.73	H-Bond (Protein Donor)	false
C8M	CG	ARG- 284	3.69	0	Hydrophobic	false
C8M	CD2	LEU- 310	4.47	0	Hydrophobic	false
C7M	CD1	LEU- 310	3.38	0	Hydrophobic	false
O3'	OD1	ASP- 437	3.02	169.2	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 437	2.73	125.12	H-Bond (Ligand Donor)	false
C5'	CB	ASP- 437	4.45	0	Hydrophobic	false
O2P	N	ASP- 437	3.22	161.69	H-Bond (Protein Donor)	false
O2	N	HIS- 454	3.4	173.33	H-Bond (Protein Donor)	false
C2'	CB	HIS- 454	3.9	0	Hydrophobic	false
C5'	CB	ALA- 457	4.02	0	Hydrophobic	false
O1P	O	HOH- 614	2.53	179.97	H-Bond (Protein Donor)	false
