Protein Data Bank Entry:

PDB ID : 3dtt

Resolution :1.700 Å

Experimental Method : X-ray

Deposition Date : 2008-07-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	NADP oxidoreductase, coenzyme F420-dependent
ID:	A0JSJ2_ARTS2
AC:	A0JSJ2
Organism:	Arthrobacter sp.
Reign:	Bacteria
TaxID:	290399
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	22.876
Number of residues:	47
Including
Standard Amino Acids:	43
Non Standard Amino Acids:	0
Water Molecules:	4
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.981	445.500

% Hydrophobic	% Polar
53.03	46.97
According to VolSite

Ligand :

HET Code:	NAP
Formula:	C21H25N7O17P3
Molecular weight:	740.381 g/mol
DrugBank ID:	DB03461
Buried Surface Area:	62.44 %
Polar Surface area:	405.54 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	5
Rings:	5
Aromatic rings:	3
Anionic atoms:	4
Cationic atoms:	1
Rule of Five Violation:	2
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
22.0396	46.7232	20.4022

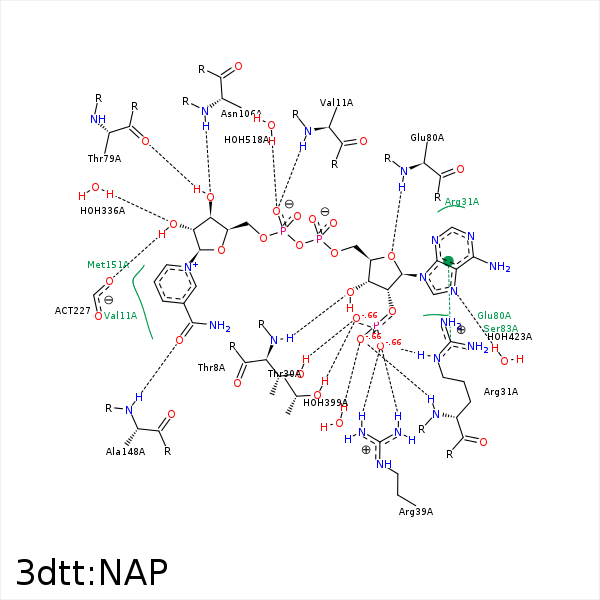

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	N	THR- 8	2.93	151.29	H-Bond (Protein Donor)	false
O1X	OG1	THR- 8	2.66	161.29	H-Bond (Protein Donor)	false
O1N	N	VAL- 11	2.93	162.35	H-Bond (Protein Donor)	false
C5D	CG2	VAL- 11	4.03	0	Hydrophobic	false
C3N	CG2	VAL- 11	3.55	0	Hydrophobic	false
O1X	OG1	THR- 30	2.64	163.17	H-Bond (Protein Donor)	false
O2X	NE	ARG- 31	3.05	163.76	H-Bond (Protein Donor)	false
O2X	N	ARG- 31	2.97	159.24	H-Bond (Protein Donor)	false
O3X	NH2	ARG- 31	3.41	175.29	H-Bond (Protein Donor)	false
O2X	CZ	ARG- 31	3.95	0	Ionic (Protein Cationic)	false
DuAr	CZ	ARG- 31	4	158.05	Pi/Cation	false
O3X	NH1	ARG- 39	3.19	144.15	H-Bond (Protein Donor)	false
O3X	NH2	ARG- 39	3.15	145.95	H-Bond (Protein Donor)	false
O3X	CZ	ARG- 39	3.61	0	Ionic (Protein Cationic)	false
C4B	CB	THR- 79	4.42	0	Hydrophobic	false
C1B	CB	THR- 79	4.18	0	Hydrophobic	false
O3D	O	THR- 79	2.82	161.8	H-Bond (Ligand Donor)	false
O4B	N	GLU- 80	3.14	171.27	H-Bond (Protein Donor)	false
C3D	CB	ALA- 105	4.38	0	Hydrophobic	false
O3D	N	ASN- 106	3.12	153.04	H-Bond (Protein Donor)	false
O2D	N	ASN- 106	3.44	140	H-Bond (Protein Donor)	false
O7N	N	ALA- 148	2.83	151.98	H-Bond (Protein Donor)	false
C5N	CE	MET- 151	3.31	0	Hydrophobic	false
O2D	O	HOH- 336	2.83	158.61	H-Bond (Protein Donor)	false
O2X	O	HOH- 399	2.73	155.71	H-Bond (Protein Donor)	false
N7A	O	HOH- 423	2.79	179.96	H-Bond (Protein Donor)	false
O1N	O	HOH- 518	2.8	179.98	H-Bond (Protein Donor)	false
