Protein Data Bank Entry:

PDB ID : 3bu5

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2007-12-31

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Insulin receptor
ID:	INSR_HUMAN
AC:	P06213
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.10.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	92 %
B	8 %

Ligand binding site composition:

B-Factor:	25.783
Number of residues:	39
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
1.155	1437.750

% Hydrophobic	% Polar
43.90	56.10
According to VolSite

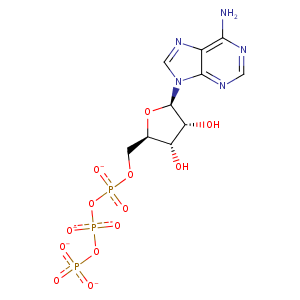

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	54.45 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
-1.47919	6.84961	22.8799

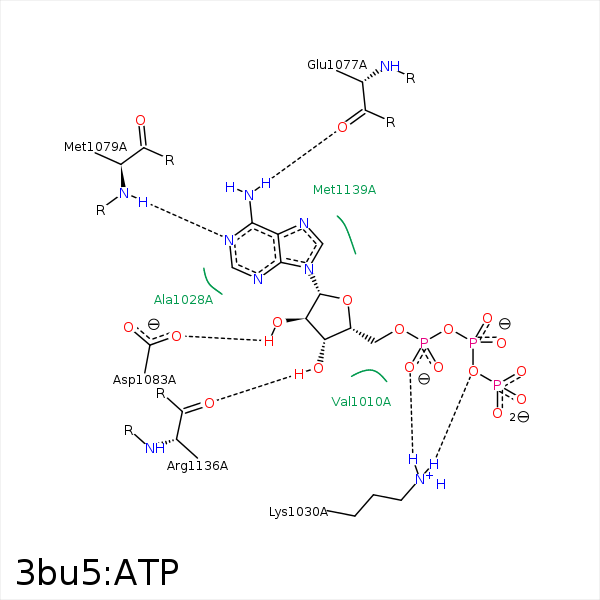

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1B	MG	MG- 301	2.3	0	Metal Acceptor	false
O2A	MG	MG- 301	2.15	0	Metal Acceptor	false
C5'	CG2	VAL- 1010	4.49	0	Hydrophobic	false
O1G	NZ	LYS- 1030	3.59	0	Ionic (Protein Cationic)	false
O1A	NZ	LYS- 1030	2.79	0	Ionic (Protein Cationic)	false
O3B	NZ	LYS- 1030	2.76	155.28	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 1030	2.79	165.7	H-Bond (Protein Donor)	false
N6	O	GLU- 1077	2.78	173.08	H-Bond (Ligand Donor)	false
N1	N	MET- 1079	2.81	154.33	H-Bond (Protein Donor)	false
O2'	N	ASP- 1083	3.48	129.75	H-Bond (Protein Donor)	false
O2'	OD1	ASP- 1083	2.72	157.47	H-Bond (Ligand Donor)	false
C2'	CB	ASP- 1083	3.76	0	Hydrophobic	false
O3'	O	ARG- 1136	3.26	149.06	H-Bond (Ligand Donor)	false
C3'	CE	MET- 1139	3.89	0	Hydrophobic	false
C2'	SD	MET- 1139	3.91	0	Hydrophobic	false
