scPDB - 3akn entry

Protein Data Bank Entry:

PDB ID : 3akn

Resolution :1.600 Å

Experimental Method : X-ray

Deposition Date : 2010-07-14

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Fatty acid-binding protein, intestinal
ID:	FABPI_RAT
AC:	P02693
Organism:	Rattus norvegicus
Reign:	Eukaryota
TaxID:	10116
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	15.751
Number of residues:	39
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.313	610.875

% Hydrophobic	% Polar
62.43	37.57
According to VolSite

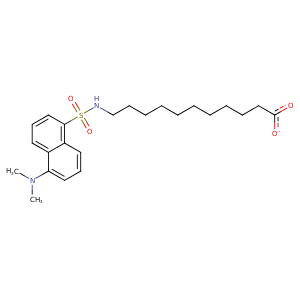

Ligand :

HET Code:	11D
Formula:	C23H33N2O4S
Molecular weight:	433.584 g/mol
DrugBank ID:	-
Buried Surface Area:	70.94 %
Polar Surface area:	97.92 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	1
Rings:	2
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	14

Mass center Coordinates

X	Y	Z
20.2992	-17.586	5.71497

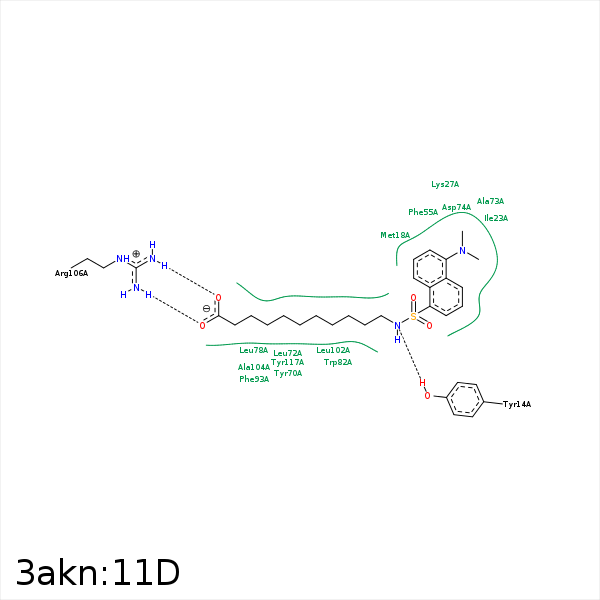

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C19	CE2	PHE- 17	4.26	0	Hydrophobic	false
C9	SD	MET- 18	3.6	0	Hydrophobic	false
C5	CE	MET- 21	4.14	0	Hydrophobic	false
C12	CD1	ILE- 23	4.25	0	Hydrophobic	false
C1	CD1	ILE- 23	3.65	0	Hydrophobic	false
C3	CG1	ILE- 23	3.73	0	Hydrophobic	false
C5	CD1	ILE- 23	3.91	0	Hydrophobic	false
C2	CD1	ILE- 23	3.59	0	Hydrophobic	false
C8	CG2	ILE- 23	4.17	0	Hydrophobic	false
C8	CB	LYS- 27	4.47	0	Hydrophobic	false
C12	CG	LYS- 27	4.26	0	Hydrophobic	false
C13	CE1	PHE- 55	3.53	0	Hydrophobic	false
C27	CG1	VAL- 60	3.69	0	Hydrophobic	false
C26	CZ	PHE- 68	4.09	0	Hydrophobic	false
C22	CE2	TYR- 70	4.04	0	Hydrophobic	false
C24	CE2	TYR- 70	4.14	0	Hydrophobic	false
C25	CZ	TYR- 70	3.97	0	Hydrophobic	false
C26	CD1	TYR- 70	3.97	0	Hydrophobic	false
C27	CE1	TYR- 70	3.74	0	Hydrophobic	false
C5	CD1	LEU- 72	3.75	0	Hydrophobic	false
C6	CB	LEU- 72	3.63	0	Hydrophobic	false
C20	CD2	LEU- 72	3.67	0	Hydrophobic	false
C20	CD2	LEU- 72	3.67	0	Hydrophobic	false
C13	CB	ALA- 73	3.64	0	Hydrophobic	false
C7	CB	ALA- 73	4.08	0	Hydrophobic	false
C12	CB	ASP- 74	3.49	0	Hydrophobic	false
C1	CB	ASP- 74	3.85	0	Hydrophobic	false
C25	CZ2	TRP- 82	4.19	0	Hydrophobic	false
C24	CE1	PHE- 93	3.74	0	Hydrophobic	false
C26	CZ	PHE- 93	3.93	0	Hydrophobic	false
C21	CD2	LEU- 102	4.17	0	Hydrophobic	false
C23	CB	ALA- 104	3.94	0	Hydrophobic	false
O29	NH1	ARG- 106	2.82	129.68	H-Bond (Protein Donor)	false
O30	NH1	ARG- 106	3.42	129.09	H-Bond (Protein Donor)	false
O30	NH2	ARG- 106	2.74	161.86	H-Bond (Protein Donor)	false
O29	CZ	ARG- 106	3.51	0	Ionic (Protein Cationic)	false
O30	CZ	ARG- 106	3.51	0	Ionic (Protein Cationic)	false
C19	CE2	TYR- 117	3.89	0	Hydrophobic	false
C20	CZ	TYR- 117	3.96	0	Hydrophobic	false
C21	CE1	TYR- 117	3.83	0	Hydrophobic	false
