Protein Data Bank Entry:

PDB ID : 3ai2

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2010-05-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	NADPH-sorbose reductase
ID:	A4PB64_9PROT
AC:	A4PB64
Organism:	Gluconobacter frateurii
Reign:	Bacteria
TaxID:	38308
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
D	100 %

Ligand binding site composition:

B-Factor:	18.031
Number of residues:	51
Including
Standard Amino Acids:	51
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.050	1228.500

% Hydrophobic	% Polar
37.36	62.64
According to VolSite

Ligand :

HET Code:	NDP
Formula:	C21H26N7O17P3
Molecular weight:	741.389 g/mol
DrugBank ID:	DB02338
Buried Surface Area:	69.97 %
Polar Surface area:	404.9 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	5
Rings:	5
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
48.0804	14.5847	49.1523

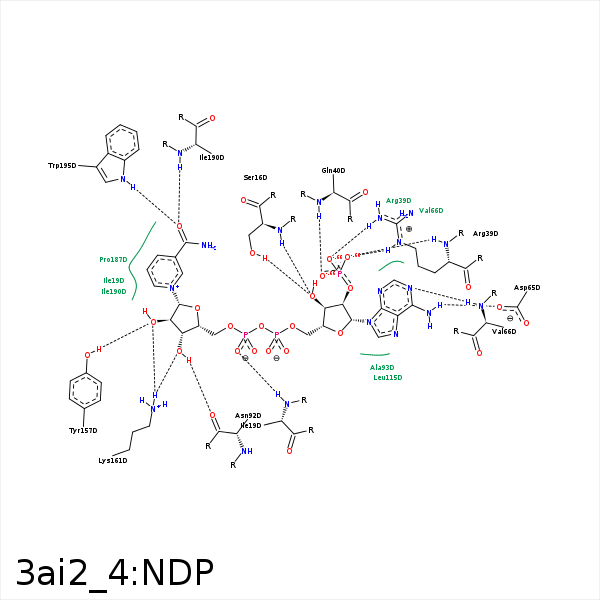

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3B	O	GLY- 14	3.4	128.67	H-Bond (Ligand Donor)	false
O3B	N	SER- 16	3.14	135.48	H-Bond (Protein Donor)	false
O3B	OG	SER- 16	2.93	162.07	H-Bond (Protein Donor)	false
O3B	N	SER- 17	3.33	137.47	H-Bond (Protein Donor)	false
O1N	N	ILE- 19	2.81	170.9	H-Bond (Protein Donor)	false
C5D	CB	ILE- 19	4.36	0	Hydrophobic	false
C3N	CD1	ILE- 19	3.93	0	Hydrophobic	false
C1B	CB	ALA- 38	4.43	0	Hydrophobic	false
O2X	NH2	ARG- 39	2.96	163.93	H-Bond (Protein Donor)	false
O3X	N	ARG- 39	2.82	158.08	H-Bond (Protein Donor)	false
O3X	NE	ARG- 39	2.85	170.71	H-Bond (Protein Donor)	false
O2X	CZ	ARG- 39	3.8	0	Ionic (Protein Cationic)	false
O3X	CZ	ARG- 39	3.65	0	Ionic (Protein Cationic)	false
O1X	N	GLN- 40	3.05	163	H-Bond (Protein Donor)	false
N6A	OD1	ASP- 65	2.87	161.21	H-Bond (Ligand Donor)	false
N1A	N	VAL- 66	2.96	154.72	H-Bond (Protein Donor)	false
O3D	O	ASN- 92	2.78	130.82	H-Bond (Ligand Donor)	false
C5N	CB	SER- 144	3.9	0	Hydrophobic	false
O2D	OH	TYR- 157	3	153.01	H-Bond (Protein Donor)	false
O3D	NZ	LYS- 161	2.8	149.72	H-Bond (Protein Donor)	false
O2D	NZ	LYS- 161	3.05	134.31	H-Bond (Protein Donor)	false
C5N	CB	PRO- 187	3.56	0	Hydrophobic	false
O7N	N	ILE- 190	3.06	156.04	H-Bond (Protein Donor)	false
C3N	CG1	ILE- 190	4.17	0	Hydrophobic	false
O2N	OG1	THR- 192	3.39	157.18	H-Bond (Protein Donor)	false
N7N	OG1	THR- 192	3.3	139.49	H-Bond (Ligand Donor)	false
O7N	NE1	TRP- 195	2.97	155.37	H-Bond (Protein Donor)	false
