sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
1.730 Å
X-ray
2007-11-21
| Min | Mean | Median | Standard Deviation | Max | Count | |
|---|---|---|---|---|---|---|
| pChEMBL: | 8.820 | 8.820 | 8.820 | 0.000 | 8.820 | 1 |
| Name: | Prothrombin |
|---|---|
| ID: | THRB_HUMAN |
| AC: | P00734 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | 3.4.21.5 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| H | 100 % |
| B-Factor: | 12.335 |
|---|---|
| Number of residues: | 31 |
| Including | |
| Standard Amino Acids: | 31 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 0.786 | 664.875 |
| % Hydrophobic | % Polar |
|---|---|
| 42.64 | 57.36 |
| According to VolSite | |

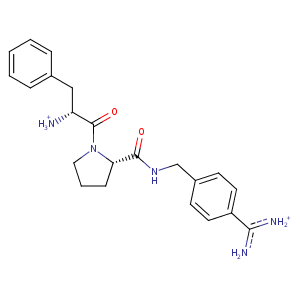

| HET Code: | 32U |
|---|---|
| Formula: | C22H29N5O2 |
| Molecular weight: | 395.498 g/mol |
| DrugBank ID: | DB07005 |
| Buried Surface Area: | 61.74 % |
| Polar Surface area: | 128.66 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 3 |
| H-Bond Donors: | 4 |
| Rings: | 3 |
| Aromatic rings: | 2 |
| Anionic atoms: | 0 |
| Cationic atoms: | 2 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 7 |
| X | Y | Z |
|---|---|---|
| 16.7033 | -12.7003 | 22.5871 |

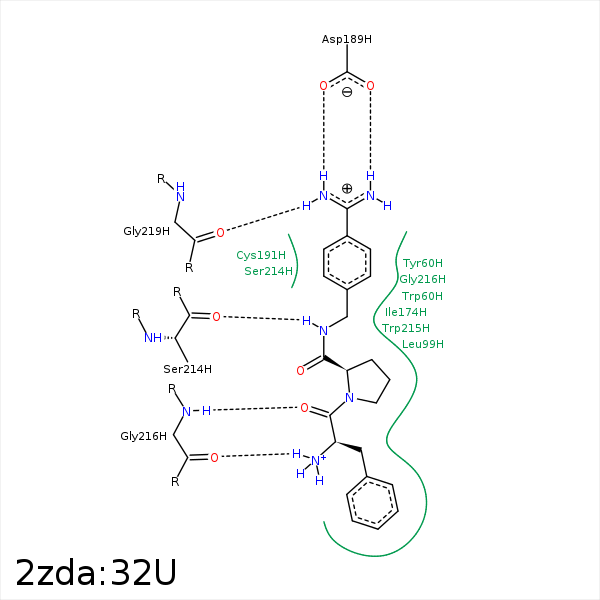

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C2 | CH2 | TRP- 60 | 3.95 | 0 | Hydrophobic |
| C3 | CZ | TYR- 60 | 3.46 | 0 | Hydrophobic |
| C10 | CD1 | LEU- 99 | 4.42 | 0 | Hydrophobic |
| C11 | CD2 | LEU- 99 | 4.04 | 0 | Hydrophobic |
| C2 | CD2 | LEU- 99 | 3.89 | 0 | Hydrophobic |
| C12 | CD1 | ILE- 174 | 3.65 | 0 | Hydrophobic |
| C21 | OD2 | ASP- 189 | 3.62 | 0 | Ionic (Ligand Cationic) |
| C21 | OD1 | ASP- 189 | 3.59 | 0 | Ionic (Ligand Cationic) |
| N46 | OD1 | ASP- 189 | 2.79 | 149.58 | H-Bond (Ligand Donor) |
| N47 | OD2 | ASP- 189 | 2.83 | 158.08 | H-Bond (Ligand Donor) |
| C29 | CB | ALA- 190 | 4.32 | 0 | Hydrophobic |
| C30 | CG1 | VAL- 213 | 3.68 | 0 | Hydrophobic |
| N23 | O | SER- 214 | 2.9 | 166.35 | H-Bond (Ligand Donor) |
| C33 | CE3 | TRP- 215 | 4.29 | 0 | Hydrophobic |
| C12 | CB | TRP- 215 | 3.79 | 0 | Hydrophobic |
| N13 | O | GLY- 216 | 2.78 | 175.5 | H-Bond (Ligand Donor) |
| O32 | N | GLY- 216 | 3.13 | 166.05 | H-Bond (Protein Donor) |
| C33 | CG | GLU- 217 | 4.45 | 0 | Hydrophobic |
| N47 | O | GLY- 219 | 2.92 | 139.52 | H-Bond (Ligand Donor) |
