scPDB - 2w3v entry

Protein Data Bank Entry:

PDB ID : 2w3v

Resolution :1.890 Å

Experimental Method : X-ray

Deposition Date : 2008-11-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Dihydrofolate reductase
ID:	O30463_MYCAV
AC:	O30463
Organism:	Mycobacterium avium
Reign:	Bacteria
TaxID:	1764
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	27.503
Number of residues:	28
Including
Standard Amino Acids:	26
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:	NDP
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.400	550.125

% Hydrophobic	% Polar
70.55	29.45
According to VolSite

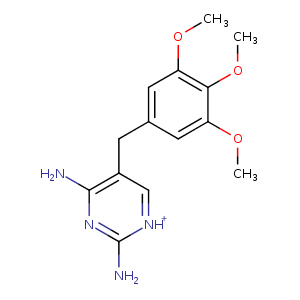

Ligand :

HET Code:	TOP
Formula:	C14H18N4O3
Molecular weight:	290.318 g/mol
DrugBank ID:	DB00440
Buried Surface Area:	61.21 %
Polar Surface area:	105.51 Å2

Number of
H-Bond Acceptors:	7
H-Bond Donors:	2
Rings:	2
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
50.579	23.0186	32.4892

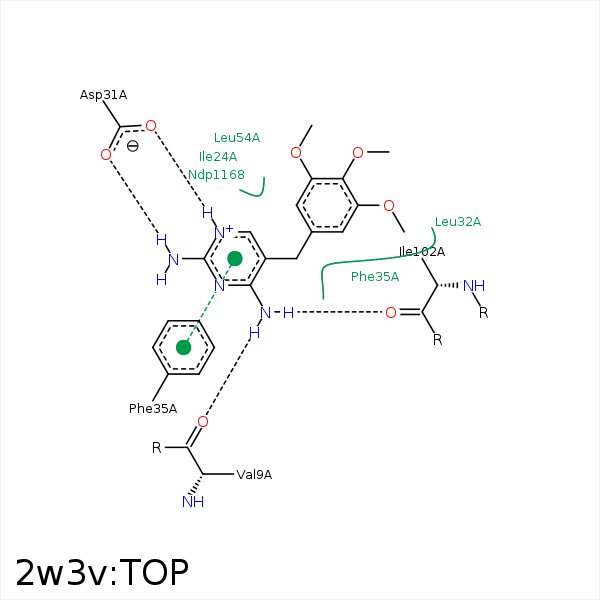

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N7	O	VAL- 9	2.91	156.48	H-Bond (Ligand Donor)	false
C20	CG1	ILE- 24	3.93	0	Hydrophobic	false
C21	CD1	ILE- 24	3.76	0	Hydrophobic	false
N2	OD2	ASP- 31	2.79	161.49	H-Bond (Ligand Donor)	false
N4	OD1	ASP- 31	2.8	174.56	H-Bond (Ligand Donor)	false
N4	OD2	ASP- 31	3.5	128.92	H-Bond (Ligand Donor)	false
C14	CD2	LEU- 32	4.17	0	Hydrophobic	false
C17	CD1	LEU- 32	4.38	0	Hydrophobic	false
C12	CD2	LEU- 32	3.95	0	Hydrophobic	false
C9	CE1	PHE- 35	4.05	0	Hydrophobic	false
C14	CD2	PHE- 35	3.91	0	Hydrophobic	false
C20	CB	SER- 53	3.93	0	Hydrophobic	false
C20	CD2	LEU- 54	4.5	0	Hydrophobic	false
C15	CD2	LEU- 54	3.65	0	Hydrophobic	false
C14	CD2	LEU- 61	4.34	0	Hydrophobic	false
N7	O	ILE- 102	2.94	132.52	H-Bond (Ligand Donor)	false
C9	C4N	NDP- 1168	3.52	0	Hydrophobic	false
C20	C2D	NDP- 1168	4	0	Hydrophobic	false
N4	O	HOH- 2103	3.45	133.69	H-Bond (Ligand Donor)	false
