sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
1.750 Å
X-ray
2007-06-18
| Name: | Camphor 5-monooxygenase |
|---|---|
| ID: | CPXA_PSEPU |
| AC: | P00183 |
| Organism: | Pseudomonas putida |
| Reign: | Bacteria |
| TaxID: | 303 |
| EC Number: | 1.14.15.1 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 18.304 |
|---|---|
| Number of residues: | 18 |
| Including | |
| Standard Amino Acids: | 17 |
| Non Standard Amino Acids: | 1 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.952 | 803.250 |
| % Hydrophobic | % Polar |
|---|---|
| 68.07 | 31.93 |
| According to VolSite | |
| HET Code: | CAM |
|---|---|
| Formula: | C10H16O |
| Molecular weight: | 152.233 g/mol |
| DrugBank ID: | DB01744 |
| Buried Surface Area: | 77.11 % |
| Polar Surface area: | 17.07 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 1 |
| H-Bond Donors: | 0 |
| Rings: | 2 |
| Aromatic rings: | 0 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 0 |
| X | Y | Z |
|---|---|---|
| 18.5566 | 12.6893 | 40.2617 |

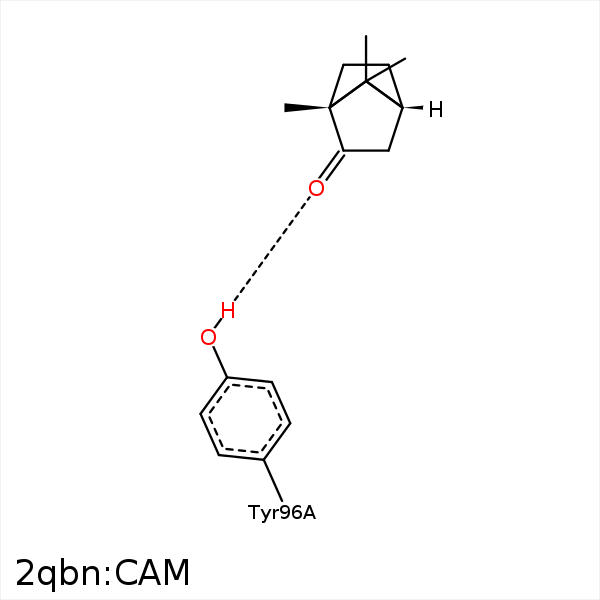

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C8 | CE2 | PHE- 87 | 4.49 | 0 | Hydrophobic |
| C10 | CZ | PHE- 87 | 4.07 | 0 | Hydrophobic |
| O | OH | TYR- 96 | 2.58 | 159.54 | H-Bond (Protein Donor) |
| C3 | CG2 | THR- 101 | 3.77 | 0 | Hydrophobic |
| C10 | CG2 | THR- 185 | 4.03 | 0 | Hydrophobic |
| C3 | CD1 | LEU- 244 | 4.1 | 0 | Hydrophobic |
| C6 | CD1 | LEU- 244 | 4.33 | 0 | Hydrophobic |
| C6 | CG1 | VAL- 247 | 4.27 | 0 | Hydrophobic |
| C10 | CG1 | VAL- 247 | 4.01 | 0 | Hydrophobic |
| C5 | CG2 | VAL- 248 | 3.55 | 0 | Hydrophobic |
| C6 | CG2 | THR- 252 | 4.46 | 0 | Hydrophobic |
| C8 | CG1 | VAL- 295 | 3.61 | 0 | Hydrophobic |
| C8 | CB | ASP- 297 | 4.06 | 0 | Hydrophobic |
| C8 | CG2 | ILE- 395 | 4.06 | 0 | Hydrophobic |
| C10 | CG2 | ILE- 395 | 4.16 | 0 | Hydrophobic |
| C9 | CG2 | VAL- 396 | 4.12 | 0 | Hydrophobic |
| C10 | CG2 | VAL- 396 | 3.91 | 0 | Hydrophobic |
