scPDB - 2os3 entry

Protein Data Bank Entry:

PDB ID : 2os3

Resolution :2.260 Å

Experimental Method : X-ray

Deposition Date : 2007-02-05

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Peptide deformylase
ID:	DEF_STRP1
AC:	P68771
Organism:	Streptococcus pyogenes serotype M1
Reign:	Bacteria
TaxID:	301447
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	32.854
Number of residues:	27
Including
Standard Amino Acids:	27
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.226	270.000

% Hydrophobic	% Polar
36.25	63.75
According to VolSite

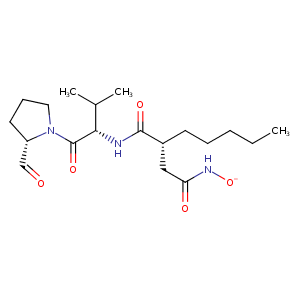

Ligand :

HET Code:	BB2
Formula:	C19H35N3O5
Molecular weight:	385.498 g/mol
DrugBank ID:	DB04310
Buried Surface Area:	68.34 %
Polar Surface area:	118.97 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	4
Rings:	1
Aromatic rings:	0
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	11

Mass center Coordinates

X	Y	Z
-21.8009	-87.1558	55.8056

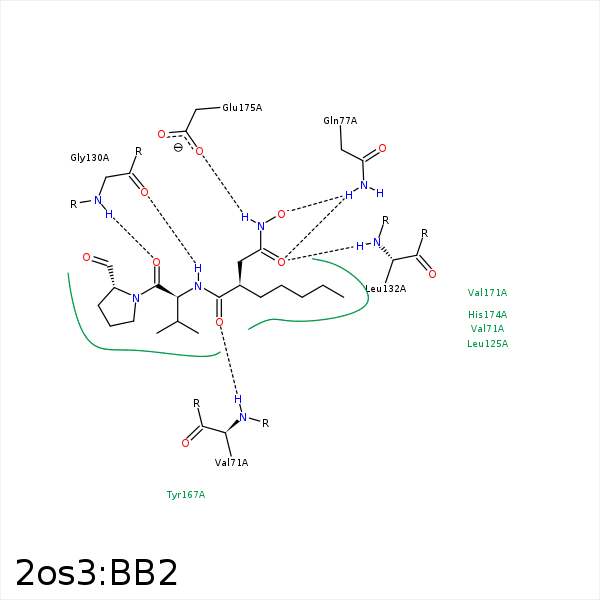

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O13	N	VAL- 71	2.99	151.05	H-Bond (Protein Donor)	false
C8	CG2	VAL- 71	3.97	0	Hydrophobic	false
O4	NE2	GLN- 77	3.05	153.85	H-Bond (Protein Donor)	false
O2	NE2	GLN- 77	2.85	120.25	H-Bond (Protein Donor)	false
C11	CD1	LEU- 125	3.45	0	Hydrophobic	false
C25	CD1	LEU- 125	3.89	0	Hydrophobic	false
C11	CG	GLU- 129	3.81	0	Hydrophobic	false
N14	O	GLY- 130	3.23	171.37	H-Bond (Ligand Donor)	false
O20	N	GLY- 130	2.72	145.26	H-Bond (Protein Donor)	false
C5	CD1	LEU- 132	3.44	0	Hydrophobic	false
O4	N	LEU- 132	3.25	147.74	H-Bond (Protein Donor)	false
C11	CE1	TYR- 167	4.17	0	Hydrophobic	false
C25	CZ	TYR- 167	3.91	0	Hydrophobic	false
C11	CG2	ILE- 170	3.75	0	Hydrophobic	false
C9	CG2	VAL- 171	4.12	0	Hydrophobic	false
C10	CB	HIS- 174	3.67	0	Hydrophobic	false
N1	OE2	GLU- 175	2.74	137.04	H-Bond (Ligand Donor)	false
C25	CD1	LEU- 205	3.67	0	Hydrophobic	false
