2.300 Å
X-ray
2006-09-28
| Name: | Alpha-2,3/2,6-sialyltransferase/sialidase |
|---|---|
| ID: | Q15KI8_PASMD |
| AC: | Q15KI8 |
| Organism: | Pasteurella multocida |
| Reign: | Bacteria |
| TaxID: | 747 |
| EC Number: | / |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| B | 100 % |
| B-Factor: | 4.658 |
|---|---|
| Number of residues: | 24 |
| Including | |
| Standard Amino Acids: | 23 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 1 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 0.579 | 654.750 |
| % Hydrophobic | % Polar |
|---|---|
| 34.54 | 65.46 |
| According to VolSite | |

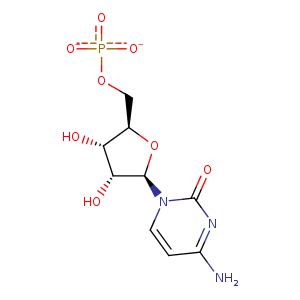

| HET Code: | C5P |
|---|---|
| Formula: | C9H12N3O8P |
| Molecular weight: | 321.181 g/mol |
| DrugBank ID: | DB03403 |
| Buried Surface Area: | 48.9 % |
| Polar Surface area: | 190.61 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 10 |
| H-Bond Donors: | 3 |
| Rings: | 2 |
| Aromatic rings: | 0 |
| Anionic atoms: | 2 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 1 |
| Rotatable Bonds: | 4 |
| X | Y | Z |
|---|---|---|
| -7.17724 | -7.23176 | -65.3612 |

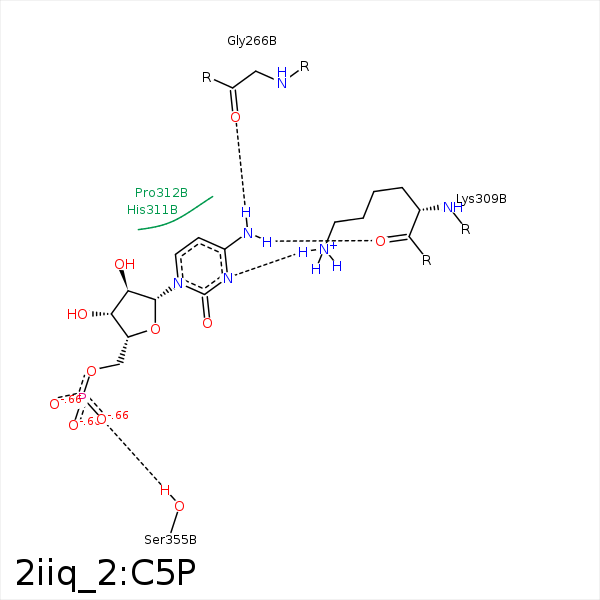

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| N4 | O | GLY- 266 | 2.89 | 158.77 | H-Bond (Ligand Donor) |
| N3 | NZ | LYS- 309 | 3.11 | 147.86 | H-Bond (Protein Donor) |
| N4 | O | LYS- 309 | 2.75 | 143.24 | H-Bond (Ligand Donor) |
| C1' | CG | PRO- 312 | 4.23 | 0 | Hydrophobic |
| O3P | OG | SER- 355 | 2.94 | 165.32 | H-Bond (Protein Donor) |
| O3P | N | SER- 356 | 3.44 | 153.49 | H-Bond (Protein Donor) |
| C2' | CD2 | LEU- 357 | 4.22 | 0 | Hydrophobic |
