scPDB - 2fze entry

Protein Data Bank Entry:

PDB ID : 2fze

Resolution :1.900 Å

Experimental Method : X-ray

Deposition Date : 2006-02-09

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Alcohol dehydrogenase class-3
ID:	ADHX_HUMAN
AC:	P11766
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	1.1.1.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	20.404
Number of residues:	40
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:	ZN

Cavity properties

Ligandability	Volume (Å3)
0.483	2018.250

% Hydrophobic	% Polar
51.00	49.00
According to VolSite

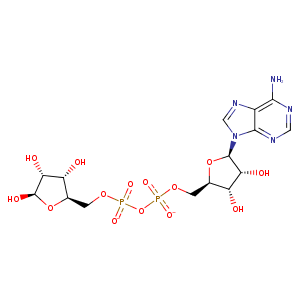

Ligand :

HET Code:	APR
Formula:	C15H21N5O14P2
Molecular weight:	557.300 g/mol
DrugBank ID:	-
Buried Surface Area:	54.39 %
Polar Surface area:	316.8 Å2

Number of
H-Bond Acceptors:	18
H-Bond Donors:	6
Rings:	4
Aromatic rings:	2
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	9

Mass center Coordinates

X	Y	Z
58.3555	9.89428	5.01353

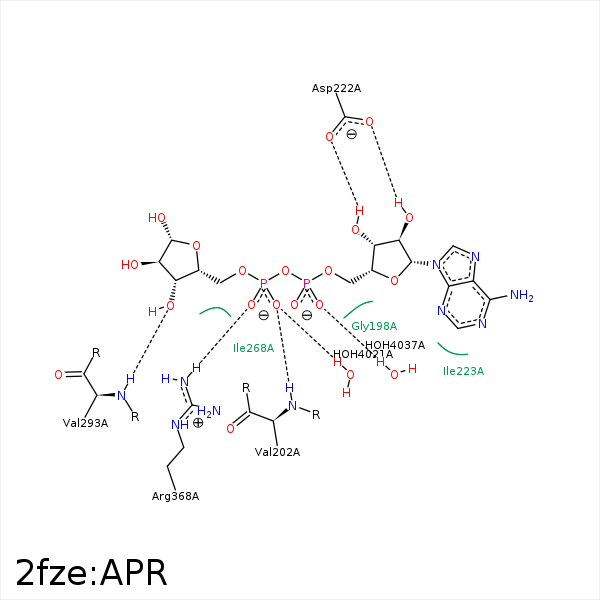

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3D	CB	HIS- 45	4.32	0	Hydrophobic	false
O2B	N	VAL- 202	3.04	161.26	H-Bond (Protein Donor)	false
C5D	CG2	VAL- 202	4.21	0	Hydrophobic	false
C1D	CG2	VAL- 202	4.37	0	Hydrophobic	false
O2'	OD1	ASP- 222	2.74	170.27	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 222	2.64	158.49	H-Bond (Ligand Donor)	false
C1'	CG1	ILE- 268	4.32	0	Hydrophobic	false
O3D	N	VAL- 293	2.97	168.33	H-Bond (Protein Donor)	false
O1B	CZ	ARG- 368	3.73	0	Ionic (Protein Cationic)	false
O1B	NH1	ARG- 368	3.02	150.74	H-Bond (Protein Donor)	false
O2B	O	HOH- 4021	2.84	168.54	H-Bond (Protein Donor)	false
O2A	O	HOH- 4037	2.67	179.95	H-Bond (Protein Donor)	false
