scPDB - 2abi entry

Protein Data Bank Entry:

PDB ID : 2abi

Resolution :2.330 Å

Experimental Method : X-ray

Deposition Date : 2005-07-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Mineralocorticoid receptor
ID:	MCR_HUMAN
AC:	P08235
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	100 %

Ligand binding site composition:

B-Factor:	42.301
Number of residues:	35
Including
Standard Amino Acids:	34
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.552	330.750

% Hydrophobic	% Polar
68.37	31.63
According to VolSite

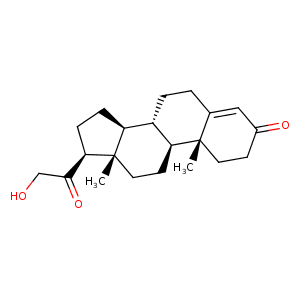

Ligand :

HET Code:	1CA
Formula:	C21H30O3
Molecular weight:	330.461 g/mol
DrugBank ID:	-
Buried Surface Area:	81.92 %
Polar Surface area:	54.37 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	1
Rings:	4
Aromatic rings:	0
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
38.505	93.1442	34.0579

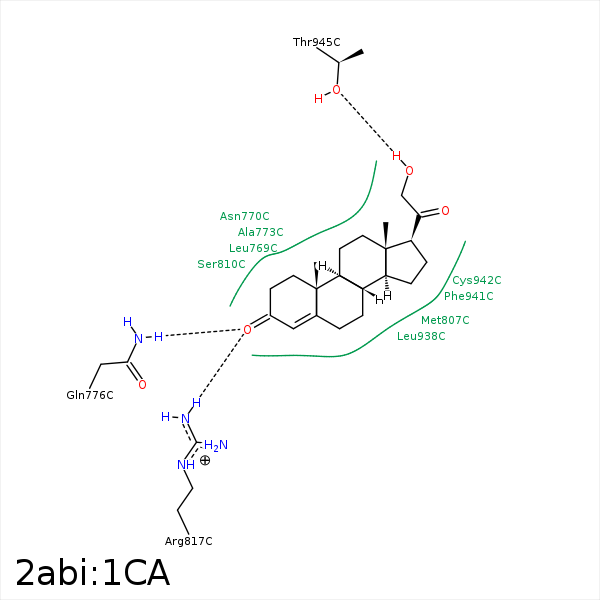

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C21	CG	LEU- 766	4.05	0	Hydrophobic	false
C12	CB	LEU- 769	3.82	0	Hydrophobic	false
C2	CD2	LEU- 772	3.67	0	Hydrophobic	false
C11	CB	ALA- 773	4.13	0	Hydrophobic	false
C19	CB	ALA- 773	3.63	0	Hydrophobic	false
O3	NE2	GLN- 776	3.24	161.07	H-Bond (Protein Donor)	false
C18	CH2	TRP- 806	3.77	0	Hydrophobic	false
C19	CZ3	TRP- 806	3.95	0	Hydrophobic	false
C8	SD	MET- 807	3.89	0	Hydrophobic	false
C18	CE	MET- 807	3.73	0	Hydrophobic	false
C7	SD	MET- 807	3.9	0	Hydrophobic	false
C15	CE	MET- 807	3.69	0	Hydrophobic	false
C6	CB	SER- 810	3.99	0	Hydrophobic	false
C19	CB	SER- 810	3.33	0	Hydrophobic	false
O3	NH2	ARG- 817	2.86	122.44	H-Bond (Protein Donor)	false
C2	CD2	PHE- 829	4.33	0	Hydrophobic	false
C16	SD	MET- 845	4	0	Hydrophobic	false
C6	SD	MET- 852	3.84	0	Hydrophobic	false
C15	CD2	LEU- 938	4.36	0	Hydrophobic	false
C21	CE2	PHE- 941	4.13	0	Hydrophobic	false
C16	CD2	PHE- 941	3.58	0	Hydrophobic	false
C16	CB	CYS- 942	4.25	0	Hydrophobic	false
C18	SG	CYS- 942	3.56	0	Hydrophobic	false
C21	CB	THR- 945	4.36	0	Hydrophobic	false
O21	OG1	THR- 945	2.64	161.75	H-Bond (Ligand Donor)	false
C21	CZ	PHE- 956	4.12	0	Hydrophobic	false
