scPDB - 1v9o entry

Protein Data Bank Entry:

PDB ID : 1v9o

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2004-01-27

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Signaling protein
ID:	P83820_THETH
AC:	P83820
Organism:	Thermus thermophilus
Reign:	Bacteria
TaxID:	274
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	57 %
B	43 %

Ligand binding site composition:

B-Factor:	33.190
Number of residues:	38
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.737	776.250

% Hydrophobic	% Polar
48.70	51.30
According to VolSite

Ligand :

HET Code:	ADP
Formula:	C10H12N5O10P2
Molecular weight:	424.177 g/mol
DrugBank ID:	-
Buried Surface Area:	72.8 %
Polar Surface area:	260.7 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
3.64622	10.4984	-6.07263

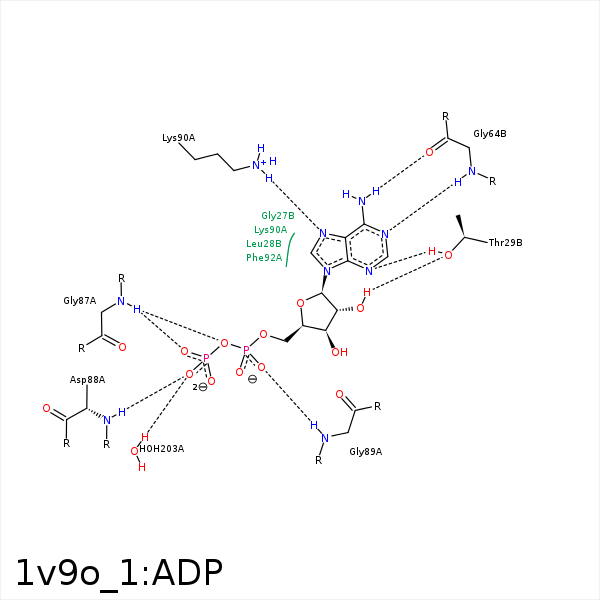

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CG2	ILE- 7	4.18	0	Hydrophobic	false
C1'	CG2	ILE- 7	3.42	0	Hydrophobic	false
C2'	CB	THR- 29	4.48	0	Hydrophobic	false
O2'	OG1	THR- 29	3.1	135.46	H-Bond (Ligand Donor)	false
N3	OG1	THR- 29	3.17	150.95	H-Bond (Protein Donor)	false
C4'	CG	LYS- 58	4.49	0	Hydrophobic	false
C2'	CG	LYS- 58	4.42	0	Hydrophobic	false
N6	O	GLY- 64	3.13	159.15	H-Bond (Ligand Donor)	false
N1	N	GLY- 64	2.87	165.71	H-Bond (Protein Donor)	false
O1B	N	GLY- 87	3.24	143.44	H-Bond (Protein Donor)	false
O2B	N	GLY- 87	3.28	135.56	H-Bond (Protein Donor)	false
O3A	N	GLY- 87	2.82	139.19	H-Bond (Protein Donor)	false
O2B	N	ASP- 88	3.04	131.13	H-Bond (Protein Donor)	false
O1A	N	GLY- 89	2.59	125.33	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 90	3.44	0	Ionic (Protein Cationic)	false
N7	NZ	LYS- 90	3.14	164.88	H-Bond (Protein Donor)	false
O2B	O	HOH- 203	2.7	179.96	H-Bond (Protein Donor)	false
