Protein Data Bank Entry:

PDB ID : 1phk

Resolution :2.200 Å

Experimental Method : X-ray

Deposition Date : 1996-03-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Phosphorylase b kinase gamma catalytic chain, skeletal muscle/heart isoform
ID:	PHKG1_RABIT
AC:	P00518
Organism:	Oryctolagus cuniculus
Reign:	Eukaryota
TaxID:	9986
EC Number:	2.7.11.19

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	38.198
Number of residues:	38
Including
Standard Amino Acids:	35
Non Standard Amino Acids:	2
Water Molecules:	1
Cofactors:
Metals:	MN MN

Cavity properties

Ligandability	Volume (Å3)
0.580	428.625

% Hydrophobic	% Polar
50.39	49.61
According to VolSite

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	60.48 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
11.5746	16.0952	14.3613

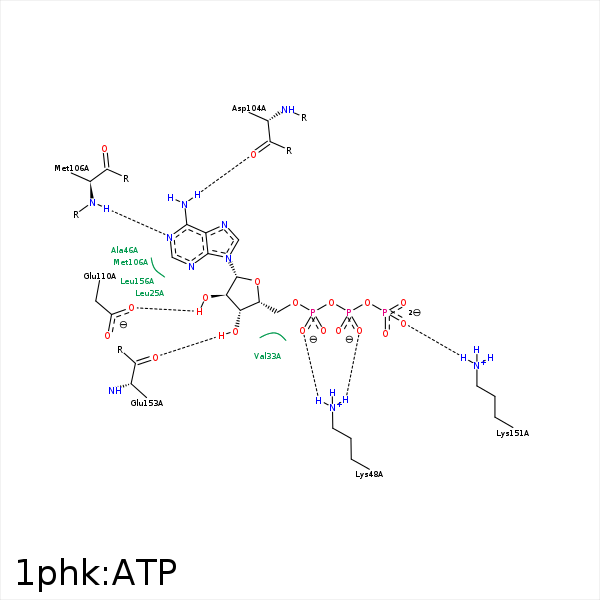

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C1'	CB	LEU- 25	4.25	0	Hydrophobic	false
C1'	CG1	VAL- 33	3.93	0	Hydrophobic	false
C5'	CG2	VAL- 33	3.71	0	Hydrophobic	false
O2B	NZ	LYS- 48	2.82	147.46	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 48	2.94	130.91	H-Bond (Protein Donor)	false
O2B	NZ	LYS- 48	2.82	0	Ionic (Protein Cationic)	false
O1A	NZ	LYS- 48	2.94	0	Ionic (Protein Cationic)	false
N6	O	ASP- 104	2.81	157.47	H-Bond (Ligand Donor)	false
N1	N	MET- 106	2.85	157.49	H-Bond (Protein Donor)	false
C2'	CG	GLU- 110	4.21	0	Hydrophobic	false
O2'	OE2	GLU- 110	3.04	170.6	H-Bond (Ligand Donor)	false
O2G	NZ	LYS- 151	3.15	158.04	H-Bond (Protein Donor)	false
O2G	NZ	LYS- 151	3.15	0	Ionic (Protein Cationic)	false
O3'	O	GLU- 153	3.19	153.08	H-Bond (Ligand Donor)	false
C2'	CD2	LEU- 156	3.95	0	Hydrophobic	false
O3G	MN	MN- 382	2.48	0	Metal Acceptor	false
O2B	MN	MN- 382	2.41	0	Metal Acceptor	false
O2G	MN	MN- 383	2.29	0	Metal Acceptor	false
O3B	MN	MN- 383	2.6	0	Metal Acceptor	false
O2A	MN	MN- 383	2.37	0	Metal Acceptor	false
