scPDB - 1f9a entry

Protein Data Bank Entry:

PDB ID : 1f9a

Resolution :2.000 Å

Experimental Method : X-ray

Deposition Date : 2000-07-09

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Nicotinamide-nucleotide adenylyltransferase
ID:	NADM_METJA
AC:	Q57961
Organism:	Methanocaldococcus jannaschii
Reign:	Archaea
TaxID:	243232
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	39.062
Number of residues:	34
Including
Standard Amino Acids:	32
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.109	351.000

% Hydrophobic	% Polar
47.12	52.88
According to VolSite

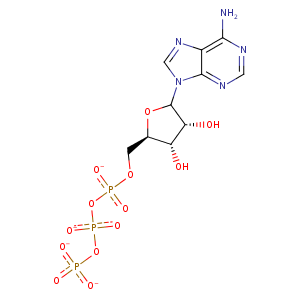

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	71.64 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
34.7974	19.1265	38.4836

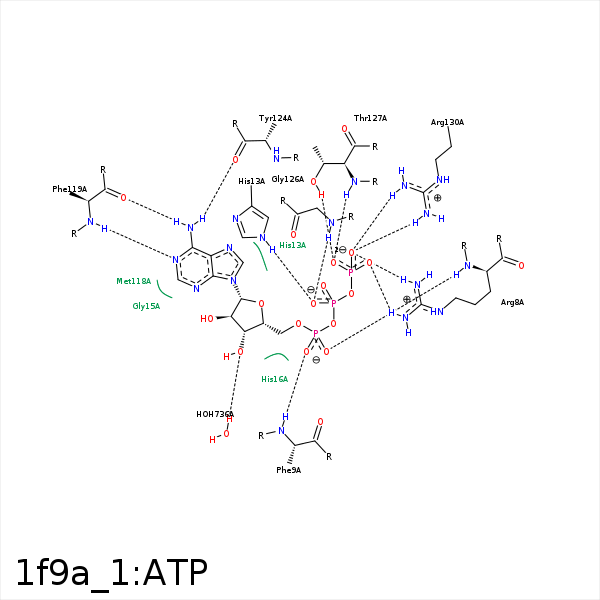

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3'	CD1	ILE- 5	4.38	0	Hydrophobic	false
O2G	NH1	ARG- 8	2.99	169.49	H-Bond (Protein Donor)	false
O3G	NH2	ARG- 8	2.83	137.79	H-Bond (Protein Donor)	false
O1A	N	ARG- 8	3.33	171.37	H-Bond (Protein Donor)	false
O2G	CZ	ARG- 8	3.78	0	Ionic (Protein Cationic)	false
O3G	CZ	ARG- 8	3.62	0	Ionic (Protein Cationic)	false
O2A	N	PHE- 9	3	157.13	H-Bond (Protein Donor)	false
O1B	NE2	HIS- 13	2.82	158.78	H-Bond (Protein Donor)	false
O2A	NE2	HIS- 16	3.18	130.23	H-Bond (Protein Donor)	false
O5'	NE2	HIS- 16	3.39	157.49	H-Bond (Protein Donor)	false
N6	O	PHE- 119	2.94	175.76	H-Bond (Ligand Donor)	false
N1	N	PHE- 119	2.91	170.92	H-Bond (Protein Donor)	false
O2B	CZ	ARG- 121	2.98	0	Ionic (Protein Cationic)	false
N6	O	TYR- 124	2.94	160.67	H-Bond (Ligand Donor)	false
O1B	N	GLY- 126	2.97	162.1	H-Bond (Protein Donor)	false
O1G	N	THR- 127	2.93	149.64	H-Bond (Protein Donor)	false
O1G	OG1	THR- 127	2.82	159.96	H-Bond (Protein Donor)	false
O3G	NH1	ARG- 130	3.18	135.25	H-Bond (Protein Donor)	false
O3G	NH2	ARG- 130	2.75	160.32	H-Bond (Protein Donor)	false
O3G	CZ	ARG- 130	3.4	0	Ionic (Protein Cationic)	false
O2G	MG	MG- 706	2.6	0	Metal Acceptor	false
O2B	MG	MG- 706	2.2	0	Metal Acceptor	false
O3A	MG	MG- 706	2.48	0	Metal Acceptor	false
O3'	O	HOH- 736	3.02	155.04	H-Bond (Protein Donor)	false
