sc-PDB

List of CHEMBLId :

This value allows a number of roughly comparable measures of half-maximal response concentration/potency/affinity to be compared on a negative logarithmic scale (e.g., an IC50 measurement of 1nM would have a pChEMBL value of 9).

Uniprot Annotation

Name:	Reaction center protein L chain
ID:	RCEL_BLAVI
AC:	P06009
Organism:	Blastochloris viridis
Reign:	Bacteria
TaxID:	1079
EC Number:	/

---

Chains:

Chain Name:	Percentage of Residues within binding site
L	91 %
M	4 %
H	4 %

---

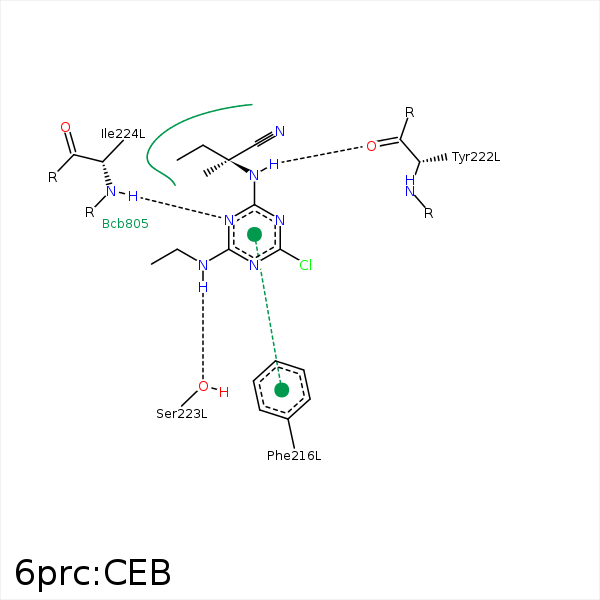

Ligand binding site composition:

B-Factor:	25.470
Number of residues:	27
Including
Standard Amino Acids:	23
Non Standard Amino Acids:	2
Water Molecules:	2
Cofactors:
Metals:

---

Cavity properties

Ligandability	Volume (Å3)
1.224	347.625

% Hydrophobic	% Polar
72.82	27.18
According to VolSite

HET Code:	CEB
Formula:	C10H15ClN6
Molecular weight:	254.719 g/mol
DrugBank ID:	DB07551
Buried Surface Area:	60.93 %
Polar Surface area:	86.52 Å2

Number of
H-Bond Acceptors:	6
H-Bond Donors:	2
Rings:	1
Aromatic rings:	1
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	5

---

Mass center Coordinates

X	Y	Z
131.462	68.764	-3.81365

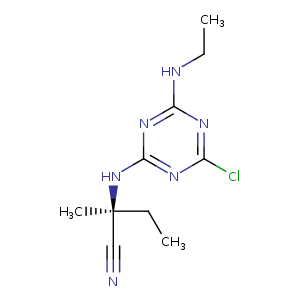

• 2D View
• 3D View
