sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
1.900 Å
X-ray
1998-05-28
| Name: | Camphor 5-monooxygenase |
|---|---|
| ID: | CPXA_PSEPU |
| AC: | P00183 |
| Organism: | Pseudomonas putida |
| Reign: | Bacteria |
| TaxID: | 303 |
| EC Number: | 1.14.15.1 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 14.952 |
|---|---|
| Number of residues: | 20 |
| Including | |
| Standard Amino Acids: | 18 |
| Non Standard Amino Acids: | 1 |
| Water Molecules: | 1 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.899 | 837.000 |
| % Hydrophobic | % Polar |
|---|---|
| 63.31 | 36.69 |
| According to VolSite | |

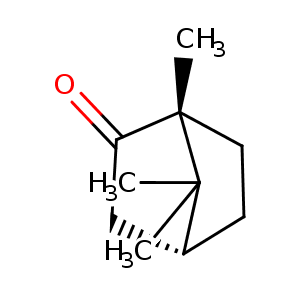

| HET Code: | CAM |
|---|---|
| Formula: | C10H16O |
| Molecular weight: | 152.233 g/mol |
| DrugBank ID: | DB01744 |
| Buried Surface Area: | 76.59 % |
| Polar Surface area: | 17.07 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 1 |
| H-Bond Donors: | 0 |
| Rings: | 2 |
| Aromatic rings: | 0 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 0 |
| X | Y | Z |
|---|---|---|
| 7.83645 | 7.86464 | 13.8406 |

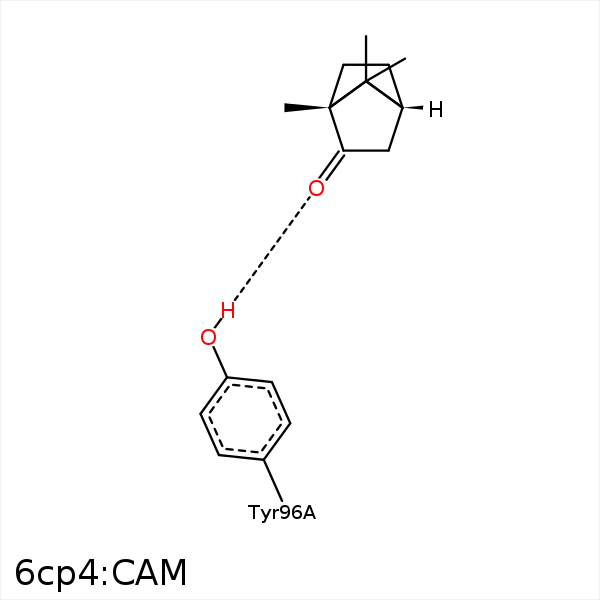

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C10 | CZ | PHE- 87 | 3.92 | 0 | Hydrophobic |
| O | OH | TYR- 96 | 2.65 | 157.01 | H-Bond (Protein Donor) |
| C3 | CG2 | THR- 101 | 4.39 | 0 | Hydrophobic |
| C10 | CG2 | THR- 185 | 4.15 | 0 | Hydrophobic |
| C3 | CD1 | LEU- 244 | 3.88 | 0 | Hydrophobic |
| C5 | CD1 | LEU- 244 | 4.14 | 0 | Hydrophobic |
| C10 | CG1 | VAL- 247 | 3.87 | 0 | Hydrophobic |
| C6 | CG2 | THR- 252 | 4.36 | 0 | Hydrophobic |
| C9 | CG2 | THR- 252 | 3.91 | 0 | Hydrophobic |
| C8 | CG1 | VAL- 295 | 3.75 | 0 | Hydrophobic |
| C9 | CG2 | VAL- 295 | 3.97 | 0 | Hydrophobic |
| C8 | CG2 | ILE- 395 | 4.31 | 0 | Hydrophobic |
| C10 | CG2 | ILE- 395 | 4.21 | 0 | Hydrophobic |
| C9 | CG2 | VAL- 396 | 3.99 | 0 | Hydrophobic |
| C10 | CG2 | VAL- 396 | 4.09 | 0 | Hydrophobic |
