scPDB - 5f2k entry

Protein Data Bank Entry:

PDB ID : 5f2k

Resolution :1.600 Å

Experimental Method : X-ray

Deposition Date : 2015-12-02

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Uncharacterized protein
ID:	B2HHT4_MYCMM
AC:	B2HHT4
Organism:	Mycobacterium marinum
Reign:	Bacteria
TaxID:	216594
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	8.059
Number of residues:	45
Including
Standard Amino Acids:	41
Non Standard Amino Acids:	0
Water Molecules:	4
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.944	421.875

% Hydrophobic	% Polar
56.80	43.20
According to VolSite

Ligand :

HET Code:	SAH
Formula:	C14H20N6O5S
Molecular weight:	384.411 g/mol
DrugBank ID:	DB01752
Buried Surface Area:	74.36 %
Polar Surface area:	212.38 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
-18.5885	-7.93069	-33.6433

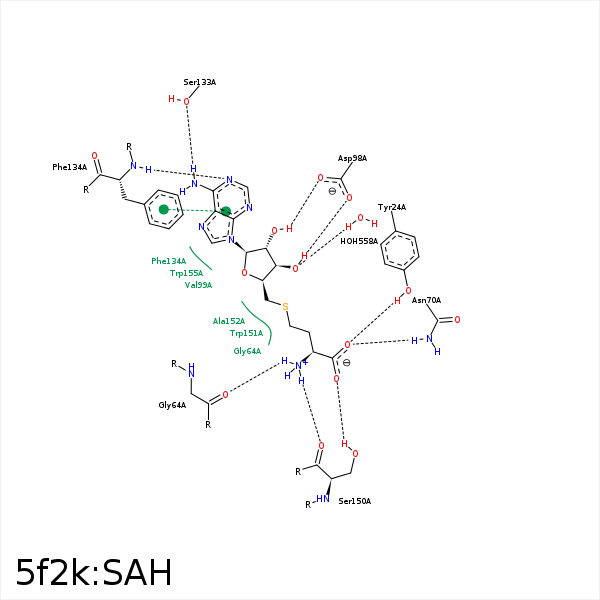

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3'	CG	MET- 19	3.73	0	Hydrophobic	false
C2'	CE	MET- 19	4.33	0	Hydrophobic	false
SD	SD	MET- 19	3.62	0	Hydrophobic	false
SD	CZ	TYR- 24	3.88	0	Hydrophobic	false
CB	CZ	TYR- 24	4.01	0	Hydrophobic	false
OXT	OH	TYR- 24	2.62	168.38	H-Bond (Protein Donor)	false
N	O	GLY- 64	2.87	172.41	H-Bond (Ligand Donor)	false
CB	CB	ALA- 66	3.8	0	Hydrophobic	false
SD	CB	ALA- 66	4.3	0	Hydrophobic	false
C3'	CB	ALA- 66	4.37	0	Hydrophobic	false
OXT	ND2	ASN- 70	2.89	155.29	H-Bond (Protein Donor)	false
O3'	OD1	ASP- 98	3.38	123.56	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 98	2.69	159.33	H-Bond (Ligand Donor)	false
O2'	OD1	ASP- 98	2.68	154.8	H-Bond (Ligand Donor)	false
N6	OG	SER- 133	3.03	159.24	H-Bond (Ligand Donor)	false
N1	N	PHE- 134	3.03	169.67	H-Bond (Protein Donor)	false
DuAr	DuAr	PHE- 134	3.55	0	Aromatic Face/Face	false
N	O	SER- 150	2.89	155.97	H-Bond (Ligand Donor)	false
O	OG	SER- 150	2.77	170.64	H-Bond (Protein Donor)	false
CG	CB	TRP- 151	3.85	0	Hydrophobic	false
C4'	CB	ALA- 152	4.29	0	Hydrophobic	false
O3'	O	HOH- 558	2.74	166.32	H-Bond (Protein Donor)	false
