scPDB - 4uog entry

Protein Data Bank Entry:

PDB ID : 4uog

Resolution :2.300 Å

Experimental Method : X-ray

Deposition Date : 2014-06-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Nucleoside diphosphate kinase
ID:	A5J299_LITVA
AC:	A5J299
Organism:	Litopenaeus vannamei
Reign:	Eukaryota
TaxID:	6689
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	4 %
C	96 %

Ligand binding site composition:

B-Factor:	18.933
Number of residues:	25
Including
Standard Amino Acids:	22
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
0.115	482.625

% Hydrophobic	% Polar
56.64	43.36
According to VolSite

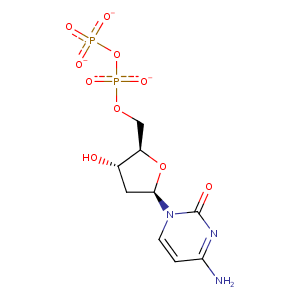

Ligand :

HET Code:	YYY
Formula:	C9H12N3O10P2
Molecular weight:	384.153 g/mol
DrugBank ID:	-
Buried Surface Area:	54.32 %
Polar Surface area:	229.55 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	2
Rings:	2
Aromatic rings:	0
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
-22.6062	-37.2919	7.16788

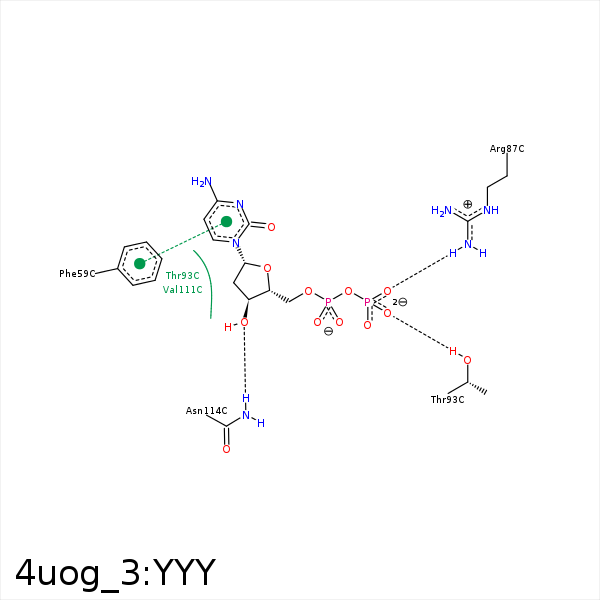

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5'	CE1	TYR- 51	3.59	0	Hydrophobic	false
C5'	CD1	LEU- 54	3.89	0	Hydrophobic	false
C1'	CE1	PHE- 59	4.07	0	Hydrophobic	false
C4'	CD2	LEU- 63	3.83	0	Hydrophobic	false
C1'	CD1	LEU- 63	4.04	0	Hydrophobic	false
O2B	NH1	ARG- 87	2.77	174.57	H-Bond (Protein Donor)	false
O2B	NH2	ARG- 87	3.5	129.37	H-Bond (Protein Donor)	false
O2B	CZ	ARG- 87	3.57	0	Ionic (Protein Cationic)	false
O1B	OG1	THR- 93	2.74	171.55	H-Bond (Protein Donor)	false
C3'	CG2	THR- 93	4.07	0	Hydrophobic	false
O1B	NH1	ARG- 104	3.38	141.91	H-Bond (Protein Donor)	false
C2'	CG2	VAL- 111	4.4	0	Hydrophobic	false
O3'	ND2	ASN- 114	2.79	167.56	H-Bond (Protein Donor)	false
O2A	MG	MG- 1153	2.15	0	Metal Acceptor	false
