Protein Data Bank Entry:

PDB ID : 4tl7

Resolution :1.940 Å

Experimental Method : X-ray

Deposition Date : 2014-05-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Circadian clock protein kinase KaiC
ID:	KAIC_SYNE7
AC:	Q79PF4
Organism:	Synechococcus elongatus
Reign:	Bacteria
TaxID:	1140
EC Number:	2.7.11.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	39 %
F	61 %

Ligand binding site composition:

B-Factor:	26.574
Number of residues:	41
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	2
Water Molecules:	2
Cofactors:
Metals:	CL MG

Cavity properties

Ligandability	Volume (Å3)
0.529	600.750

% Hydrophobic	% Polar
45.51	54.49
According to VolSite

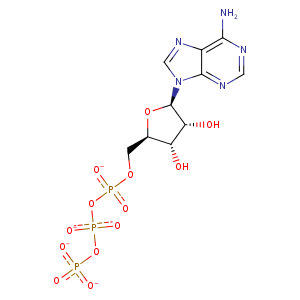

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	76.16 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
-58.7925	18.3585	-41.5829

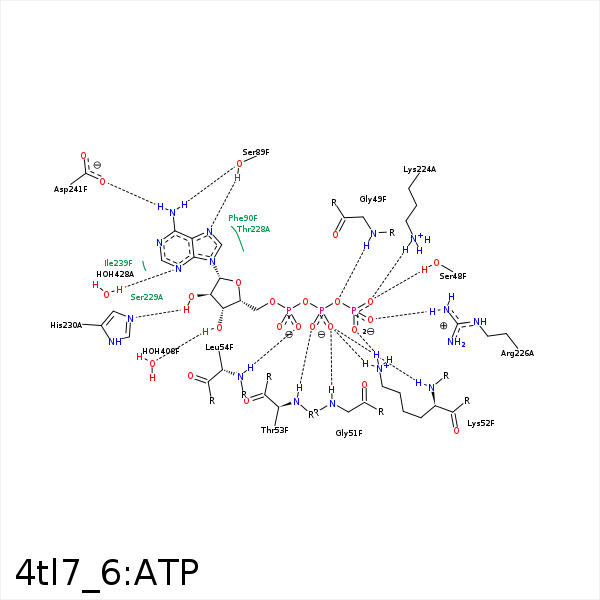

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1G	OG	SER- 48	2.71	146.81	H-Bond (Protein Donor)	false
O1B	N	GLY- 49	3.49	123.06	H-Bond (Protein Donor)	false
O3B	N	GLY- 49	3.21	140.46	H-Bond (Protein Donor)	false
O1B	N	GLY- 51	3.01	144.76	H-Bond (Protein Donor)	false
O3A	N	GLY- 51	3.42	132.89	H-Bond (Protein Donor)	false
O3G	NZ	LYS- 52	2.62	152.38	H-Bond (Protein Donor)	false
O1B	N	LYS- 52	2.93	155.96	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 52	2.99	151.28	H-Bond (Protein Donor)	false
O3G	NZ	LYS- 52	2.62	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 52	2.99	0	Ionic (Protein Cationic)	false
O2B	N	THR- 53	2.92	166.51	H-Bond (Protein Donor)	false
O2A	N	LEU- 54	2.81	138.29	H-Bond (Protein Donor)	false
N7	OG	SER- 89	2.68	148.97	H-Bond (Protein Donor)	false
N6	O	SER- 89	3.43	120.72	H-Bond (Ligand Donor)	false
N6	OG	SER- 89	2.93	162.12	H-Bond (Ligand Donor)	false
O3'	N	LEU- 225	3.25	137.2	H-Bond (Protein Donor)	false
O2G	CZ	ARG- 226	4	0	Ionic (Protein Cationic)	false
O2G	NH2	ARG- 226	3.26	159.81	H-Bond (Protein Donor)	false
O2'	NE2	HIS- 230	2.87	162.97	H-Bond (Ligand Donor)	false
C4'	CD1	ILE- 239	4.38	0	Hydrophobic	false
C1'	CG2	ILE- 239	3.95	0	Hydrophobic	false
N6	OD1	ASP- 241	2.98	172.04	H-Bond (Ligand Donor)	false
O2G	MG	MG- 302	2.05	0	Metal Acceptor	false
O2B	MG	MG- 302	2.04	0	Metal Acceptor	false
O3'	O	HOH- 408	2.68	159.6	H-Bond (Ligand Donor)	false
N3	O	HOH- 428	3.07	155.35	H-Bond (Protein Donor)	false
