scPDB - 4pl0 entry

Protein Data Bank Entry:

PDB ID : 4pl0

Resolution :2.700 Å

Experimental Method : X-ray

Deposition Date : 2014-05-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Microcin-J25 export ATP-binding/permease protein McjD
ID:	MCJD_ECOLX
AC:	Q9X2W0
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	562
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	61 %
B	39 %

Ligand binding site composition:

B-Factor:	94.685
Number of residues:	38
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
1.161	1235.250

% Hydrophobic	% Polar
41.80	58.20
According to VolSite

Ligand :

HET Code:	ANP
Formula:	C10H13N6O12P3
Molecular weight:	502.164 g/mol
DrugBank ID:	-
Buried Surface Area:	74.74 %
Polar Surface area:	322.68 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
-32.0552	-27.7687	16.2565

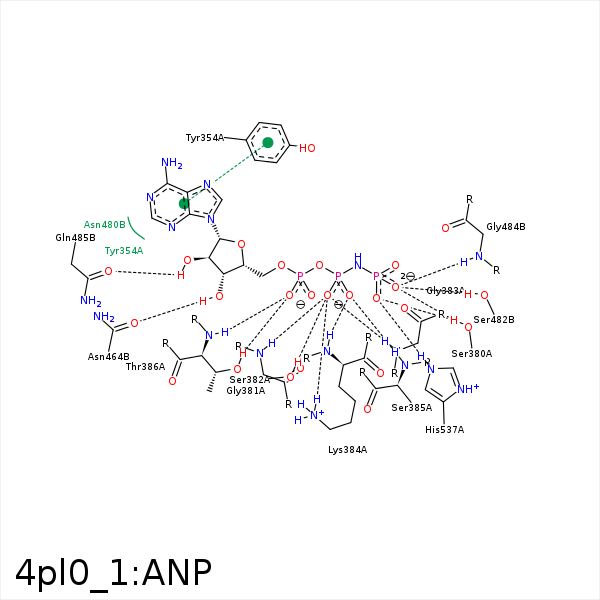

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C1'	CE2	TYR- 354	4.13	0	Hydrophobic	false
DuAr	DuAr	TYR- 354	3.7	0	Aromatic Face/Face	false
C5'	CG2	ILE- 360	3.98	0	Hydrophobic	false
C4'	CG1	ILE- 360	3.92	0	Hydrophobic	false
C1'	CG1	ILE- 360	4.32	0	Hydrophobic	false
O1G	OG	SER- 380	3.1	133.84	H-Bond (Protein Donor)	false
O2G	OG	SER- 380	3	145.12	H-Bond (Protein Donor)	false
O1B	N	GLY- 381	2.8	145.72	H-Bond (Protein Donor)	false
O1B	OG	SER- 382	3.32	155.56	H-Bond (Protein Donor)	false
O1B	N	GLY- 383	2.72	156.97	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 384	2.99	165.89	H-Bond (Protein Donor)	false
O2B	N	LYS- 384	3.06	135.81	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 384	2.99	0	Ionic (Protein Cationic)	false
O2B	NZ	LYS- 384	3.55	0	Ionic (Protein Cationic)	false
O2B	N	SER- 385	3.24	171.77	H-Bond (Protein Donor)	false
O1A	OG1	THR- 386	2.56	167.03	H-Bond (Protein Donor)	false
O1A	N	THR- 386	2.78	167.89	H-Bond (Protein Donor)	false
O3'	OD1	ASN- 464	2.73	129.35	H-Bond (Ligand Donor)	false
O2G	OG	SER- 482	3.12	134.45	H-Bond (Protein Donor)	false
O2G	N	GLY- 484	2.58	172.45	H-Bond (Protein Donor)	false
O2'	OE1	GLN- 485	2.72	154.22	H-Bond (Ligand Donor)	false
O1G	NE2	HIS- 537	3.25	165.12	H-Bond (Protein Donor)	false
O3G	MG	MG- 602	2.03	0	Metal Acceptor	false
O2B	MG	MG- 602	2.57	0	Metal Acceptor	false
