Protein Data Bank Entry:

PDB ID : 4o3m

Resolution :2.300 Å

Experimental Method : X-ray

Deposition Date : 2013-12-18

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Bloom syndrome protein
ID:	BLM_HUMAN
AC:	P54132
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.6.4.12

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	65.889
Number of residues:	31
Including
Standard Amino Acids:	29
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:	CA

Cavity properties

Ligandability	Volume (Å3)
0.919	1518.750

% Hydrophobic	% Polar
41.56	58.44
According to VolSite

Ligand :

HET Code:	ADP
Formula:	C10H12N5O10P2
Molecular weight:	424.177 g/mol
DrugBank ID:	-
Buried Surface Area:	56.94 %
Polar Surface area:	260.7 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
129.216	14.6277	65.6162

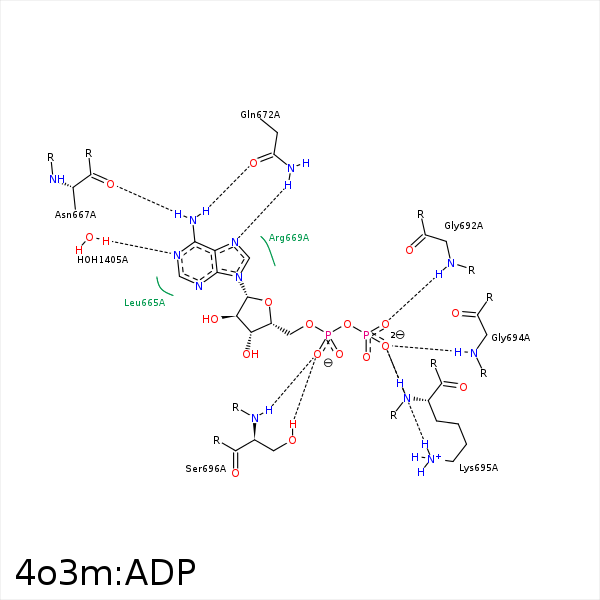

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
N6	O	ASN- 667	2.83	163.73	H-Bond (Ligand Donor)	false
DuAr	CZ	ARG- 669	3.9	27.72	Pi/Cation	false
N7	NE2	GLN- 672	2.9	168.12	H-Bond (Protein Donor)	false
N6	OE1	GLN- 672	2.84	156.24	H-Bond (Ligand Donor)	false
O3B	N	GLY- 692	2.74	165.86	H-Bond (Protein Donor)	false
O2B	N	GLY- 694	2.96	160.5	H-Bond (Protein Donor)	false
O3A	N	GLY- 694	3.18	126.2	H-Bond (Protein Donor)	false
O1B	NZ	LYS- 695	3.75	0	Ionic (Protein Cationic)	false
O2B	NZ	LYS- 695	2.75	0	Ionic (Protein Cationic)	false
O3B	NZ	LYS- 695	3.58	0	Ionic (Protein Cationic)	false
O2B	NZ	LYS- 695	2.75	160.43	H-Bond (Protein Donor)	false
O2B	N	LYS- 695	2.97	161.34	H-Bond (Protein Donor)	false
O1A	N	SER- 696	3.11	146.46	H-Bond (Protein Donor)	false
O1A	OG	SER- 696	2.81	146.66	H-Bond (Protein Donor)	false
O1B	CA	CA- 1301	2.7	0	Metal Acceptor	false
N1	O	HOH- 1405	2.75	179.95	H-Bond (Protein Donor)	false
