scPDB - 4o0m entry

Protein Data Bank Entry:

PDB ID : 4o0m

Resolution :2.840 Å

Experimental Method : X-ray

Deposition Date : 2013-12-13

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Circadian clock protein kinase KaiC
ID:	KAIC_THEEB
AC:	Q79V60
Organism:	Thermosynechococcus elongatus
Reign:	Bacteria
TaxID:	197221
EC Number:	2.7.11.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	60 %
B	40 %

Ligand binding site composition:

B-Factor:	40.408
Number of residues:	40
Including
Standard Amino Acids:	39
Non Standard Amino Acids:	1
Water Molecules:	0
Cofactors:
Metals:	MG

Cavity properties

Ligandability	Volume (Å3)
1.362	1184.625

% Hydrophobic	% Polar
48.43	51.57
According to VolSite

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	69.24 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
-18.4634	28.3339	-9.74974

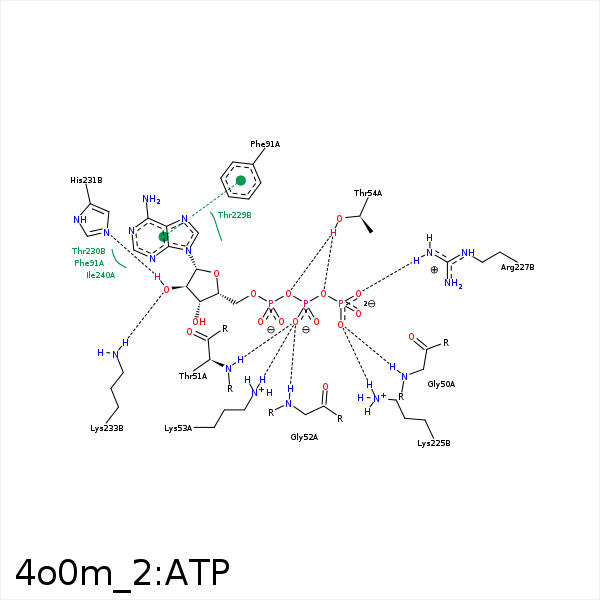

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O1G	N	GLY- 50	3.36	164.99	H-Bond (Protein Donor)	false
O1B	N	THR- 51	2.86	150.52	H-Bond (Protein Donor)	false
O1B	N	GLY- 52	3.14	166.81	H-Bond (Protein Donor)	false
O2G	NZ	LYS- 53	3.3	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 53	3.16	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 53	3.16	167.6	H-Bond (Protein Donor)	false
O3A	N	THR- 54	3.28	133.43	H-Bond (Protein Donor)	false
O3A	OG1	THR- 54	2.93	148.7	H-Bond (Protein Donor)	false
O1G	NZ	LYS- 225	2.9	157.46	H-Bond (Protein Donor)	false
O1G	NZ	LYS- 225	2.9	0	Ionic (Protein Cationic)	false
O3G	NZ	LYS- 225	3.58	0	Ionic (Protein Cationic)	false
C3'	CB	LYS- 225	4.12	0	Hydrophobic	false
O3G	NH2	ARG- 227	2.64	123.57	H-Bond (Protein Donor)	false
O3G	CZ	ARG- 227	3.4	0	Ionic (Protein Cationic)	false
O2'	NE2	HIS- 231	2.97	155.24	H-Bond (Ligand Donor)	false
O2'	NZ	LYS- 233	2.83	137.98	H-Bond (Protein Donor)	false
C4'	CD1	ILE- 240	4.04	0	Hydrophobic	false
C1'	CD1	ILE- 240	3.64	0	Hydrophobic	false
