sc-PDB

List of CHEMBLId :

This value allows a number of roughly comparable measures of half-maximal response concentration/potency/affinity to be compared on a negative logarithmic scale (e.g., an IC50 measurement of 1nM would have a pChEMBL value of 9).

Uniprot Annotation

Name:	Muscarinic acetylcholine receptor M2
ID:	ACM2_HUMAN
AC:	P08172
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	/

---

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

---

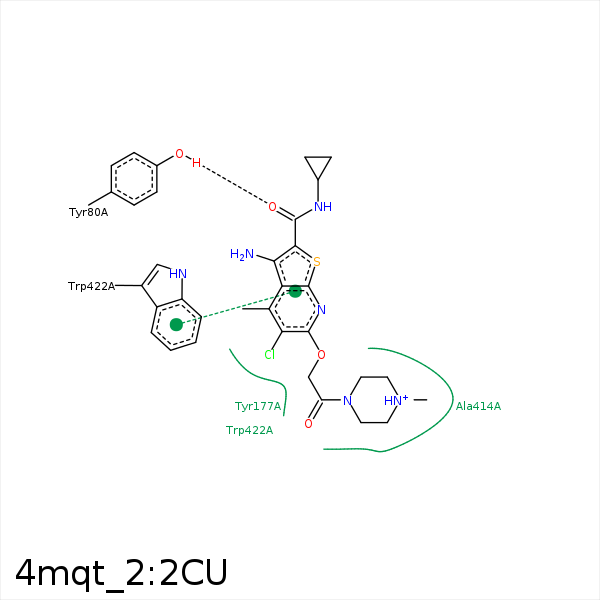

Ligand binding site composition:

B-Factor:	0.000
Number of residues:	27
Including
Standard Amino Acids:	27
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

---

Cavity properties

Ligandability	Volume (Å3)
1.115	735.750

% Hydrophobic	% Polar
54.13	45.87
According to VolSite

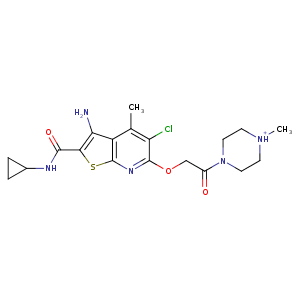

HET Code:	2CU
Formula:	C19H25ClN5O3S
Molecular weight:	438.951 g/mol
DrugBank ID:	-
Buried Surface Area:	44.8 %
Polar Surface area:	130.22 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	3
Rings:	4
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	5

---

Mass center Coordinates

X	Y	Z
-2.22121	-12.9882	-16.678
