scPDB - 4ki8 entry

Protein Data Bank Entry:

PDB ID : 4ki8

Resolution :2.720 Å

Experimental Method : X-ray

Deposition Date : 2013-05-01

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	60 kDa chaperonin
ID:	Q548M1_ECOLX
AC:	Q548M1
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	562
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	40.327
Number of residues:	42
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	2
Water Molecules:	3
Cofactors:
Metals:	MG K

Cavity properties

Ligandability	Volume (Å3)
1.069	1215.000

% Hydrophobic	% Polar
36.94	63.06
According to VolSite

Ligand :

HET Code:	ADP
Formula:	C10H12N5O10P2
Molecular weight:	424.177 g/mol
DrugBank ID:	-
Buried Surface Area:	65.55 %
Polar Surface area:	260.7 Å2

Number of
H-Bond Acceptors:	14
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	3
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
297.645	24.5972	295.593

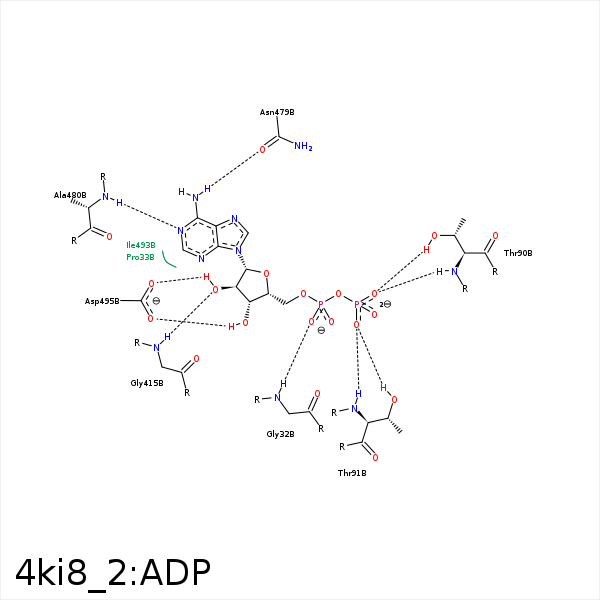

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CD1	LEU- 31	4.31	0	Hydrophobic	false
O1A	N	GLY- 32	2.79	150.56	H-Bond (Protein Donor)	false
O5'	N	GLY- 32	3.38	141.31	H-Bond (Protein Donor)	false
O3B	OG1	THR- 90	3.13	158.78	H-Bond (Protein Donor)	false
O3B	N	THR- 90	3.25	166.38	H-Bond (Protein Donor)	false
O1B	OG1	THR- 91	2.83	175.11	H-Bond (Protein Donor)	false
O1B	N	THR- 91	2.84	149.09	H-Bond (Protein Donor)	false
C2'	CG2	ILE- 150	4.2	0	Hydrophobic	false
O2'	N	GLY- 415	2.69	171.36	H-Bond (Protein Donor)	false
C4'	CD1	ILE- 454	4.33	0	Hydrophobic	false
C1'	CD1	ILE- 454	3.97	0	Hydrophobic	false
N6	OD1	ASN- 479	3.18	170.23	H-Bond (Ligand Donor)	false
N1	N	ALA- 480	2.99	156.23	H-Bond (Protein Donor)	false
O3'	OD2	ASP- 495	3.12	166.72	H-Bond (Ligand Donor)	false
O2'	OD2	ASP- 495	3.23	134.07	H-Bond (Ligand Donor)	false
O2'	OD1	ASP- 495	3.02	154.2	H-Bond (Ligand Donor)	false
O2B	MG	MG- 602	2.23	0	Metal Acceptor	false
O2A	MG	MG- 602	2.48	0	Metal Acceptor	false
