sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
2.120 Å
X-ray
2013-02-04
| Min | Mean | Median | Standard Deviation | Max | Count | |
|---|---|---|---|---|---|---|
| pChEMBL: | 7.750 | 7.750 | 7.750 | 0.000 | 7.750 | 1 |
| Name: | Tankyrase-2 |
|---|---|
| ID: | TNKS2_HUMAN |
| AC: | Q9H2K2 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | 2.4.2.30 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 20.208 |
|---|---|
| Number of residues: | 28 |
| Including | |
| Standard Amino Acids: | 28 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 0.524 | 651.375 |
| % Hydrophobic | % Polar |
|---|---|
| 44.56 | 55.44 |
| According to VolSite | |

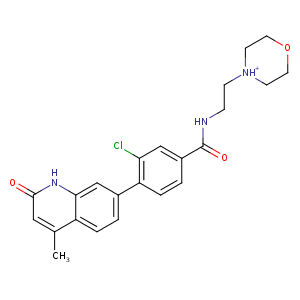

| HET Code: | AJ7 |
|---|---|
| Formula: | C23H25ClN3O3 |
| Molecular weight: | 426.916 g/mol |
| DrugBank ID: | - |
| Buried Surface Area: | 48.58 % |
| Polar Surface area: | 71.87 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 3 |
| H-Bond Donors: | 3 |
| Rings: | 4 |
| Aromatic rings: | 2 |
| Anionic atoms: | 0 |
| Cationic atoms: | 1 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 5 |
| X | Y | Z |
|---|---|---|
| 6.07147 | 10.738 | -6.7422 |

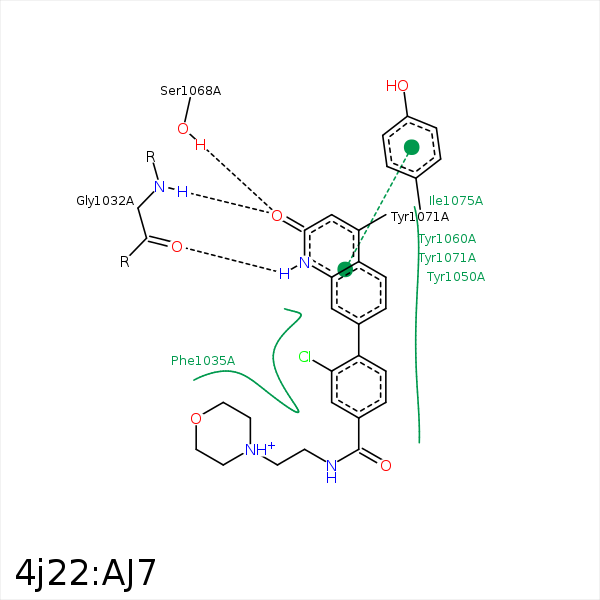

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| O5 | N | GLY- 1032 | 2.8 | 171.96 | H-Bond (Protein Donor) |
| N6 | O | GLY- 1032 | 2.69 | 147.94 | H-Bond (Ligand Donor) |
| C12 | CB | TYR- 1050 | 3.99 | 0 | Hydrophobic |
| C30 | CD1 | TYR- 1050 | 3.43 | 0 | Hydrophobic |
| C29 | CB | TYR- 1050 | 3.8 | 0 | Hydrophobic |
| C1 | CB | TYR- 1060 | 3.41 | 0 | Hydrophobic |
| C31 | CB | TYR- 1060 | 3.65 | 0 | Hydrophobic |
| O5 | OG | SER- 1068 | 2.84 | 154.1 | H-Bond (Protein Donor) |
| C1 | CE2 | TYR- 1071 | 3.69 | 0 | Hydrophobic |
| CL | CB | TYR- 1071 | 3.58 | 0 | Hydrophobic |
| C8 | CB | TYR- 1071 | 3.58 | 0 | Hydrophobic |
| DuAr | DuAr | TYR- 1071 | 3.77 | 0 | Aromatic Face/Face |
| CL | CD1 | ILE- 1075 | 4.35 | 0 | Hydrophobic |
| C11 | CD1 | ILE- 1075 | 3.41 | 0 | Hydrophobic |
| C27 | CD1 | ILE- 1075 | 3.49 | 0 | Hydrophobic |
