scPDB - 4iv0 entry

Protein Data Bank Entry:

PDB ID : 4iv0

Resolution :1.400 Å

Experimental Method : X-ray

Deposition Date : 2013-01-22

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Phosphoethanolamine N-methyltransferase, putative
ID:	A5K867_PLAVS
AC:	A5K867
Organism:	Plasmodium vivax
Reign:	Eukaryota
TaxID:	126793
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
B	100 %

Ligand binding site composition:

B-Factor:	7.224
Number of residues:	42
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	0
Water Molecules:	4
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.037	401.625

% Hydrophobic	% Polar
59.66	40.34
According to VolSite

Ligand :

HET Code:	SAM
Formula:	C15H23N6O5S
Molecular weight:	399.445 g/mol
DrugBank ID:	DB00118
Buried Surface Area:	66.83 %
Polar Surface area:	189.77 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	2
Rule of Five Violation:	1
Rotatable Bonds:	7

Mass center Coordinates

X	Y	Z
-9.89959	-18.5909	-49.475

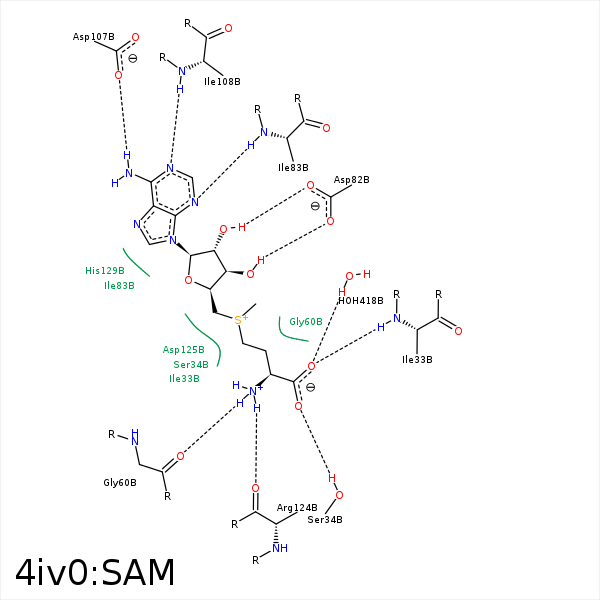

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3'	CZ	TYR- 16	3.73	0	Hydrophobic	false
C2'	CE2	TYR- 16	4.03	0	Hydrophobic	false
SD	CZ	TYR- 16	4.03	0	Hydrophobic	false
O	N	ILE- 33	2.92	166.62	H-Bond (Protein Donor)	false
SD	CD1	ILE- 33	3.83	0	Hydrophobic	false
CB	CG1	ILE- 33	3.69	0	Hydrophobic	false
OXT	OG	SER- 34	2.54	161.71	H-Bond (Protein Donor)	false
CG	CB	SER- 34	3.97	0	Hydrophobic	false
CE	CB	SER- 34	4.31	0	Hydrophobic	false
N	O	GLY- 60	2.69	150.25	H-Bond (Ligand Donor)	false
O3'	OD1	ASP- 82	2.71	166.47	H-Bond (Ligand Donor)	false
O3'	OD2	ASP- 82	3.49	125.21	H-Bond (Ligand Donor)	false
O2'	OD2	ASP- 82	2.62	155.82	H-Bond (Ligand Donor)	false
N3	N	ILE- 83	3.26	150.06	H-Bond (Protein Donor)	false
C1'	CG2	ILE- 83	4.47	0	Hydrophobic	false
C3'	CE	MET- 87	4.14	0	Hydrophobic	false
N6	OD1	ASP- 107	2.89	152.8	H-Bond (Ligand Donor)	false
N1	N	ILE- 108	2.99	178.33	H-Bond (Protein Donor)	false
N	O	ARG- 124	3.09	159.24	H-Bond (Ligand Donor)	false
C5'	CB	SER- 126	3.87	0	Hydrophobic	false
O	O	HOH- 418	2.73	154.83	H-Bond (Protein Donor)	false
