Protein Data Bank Entry:

PDB ID : 4i6f

Resolution :2.900 Å

Experimental Method : X-ray

Deposition Date : 2012-11-29

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Serine/threonine-protein kinase PLK2
ID:	PLK2_HUMAN
AC:	Q9NYY3
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.21

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	25.379
Number of residues:	30
Including
Standard Amino Acids:	29
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.134	583.875

% Hydrophobic	% Polar
54.34	45.66
According to VolSite

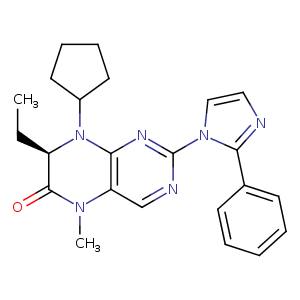

Ligand :

HET Code:	1C7
Formula:	C23H26N6O
Molecular weight:	402.492 g/mol
DrugBank ID:	-
Buried Surface Area:	66.88 %
Polar Surface area:	67.15 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	0
Rings:	5
Aromatic rings:	3
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	4

Mass center Coordinates

X	Y	Z
9.63847	6.96037	10.8032

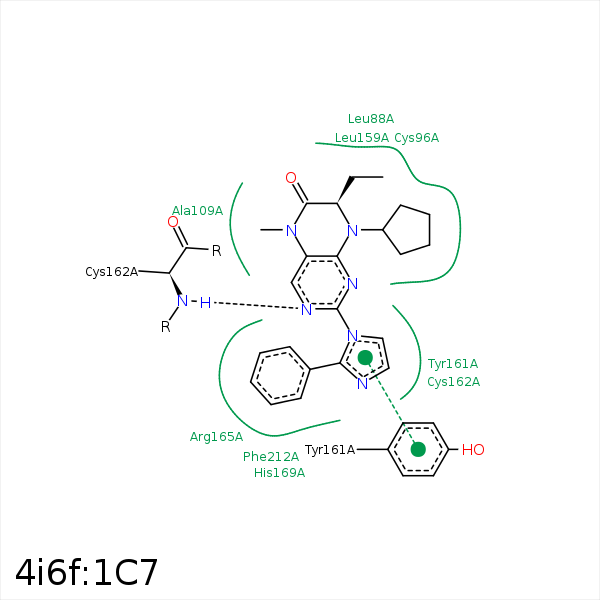

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C12	CB	LEU- 88	4.16	0	Hydrophobic	false
C17	SG	CYS- 96	3.8	0	Hydrophobic	false
C12	SG	CYS- 96	3.24	0	Hydrophobic	false
C17	CB	ALA- 109	4.08	0	Hydrophobic	false
C17	CG	LYS- 111	4.09	0	Hydrophobic	false
C17	CD1	LEU- 159	4.09	0	Hydrophobic	false
N6	N	CYS- 162	2.96	162.02	H-Bond (Protein Donor)	false
C30	CG	ARG- 165	3.98	0	Hydrophobic	false
C9	CE2	PHE- 212	3.56	0	Hydrophobic	false
C15	CE2	PHE- 212	4	0	Hydrophobic	false
