scPDB - 4i0f entry

Protein Data Bank Entry:

PDB ID : 4i0f

Resolution :1.800 Å

Experimental Method : X-ray

Deposition Date : 2012-11-16

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Beta-secretase 1
ID:	BACE1_HUMAN
AC:	P56817
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	3.4.23.46

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	27.356
Number of residues:	31
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.360	303.750

% Hydrophobic	% Polar
38.89	61.11
According to VolSite

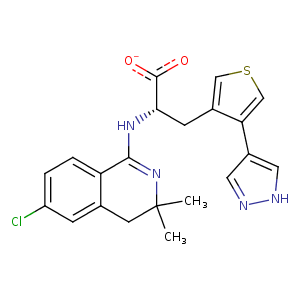

Ligand :

HET Code:	1BF
Formula:	C21H21ClN4O2S
Molecular weight:	428.935 g/mol
DrugBank ID:	-
Buried Surface Area:	65.64 %
Polar Surface area:	123.05 Å2

Number of
H-Bond Acceptors:	3
H-Bond Donors:	3
Rings:	4
Aromatic rings:	3
Anionic atoms:	1
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	6

Mass center Coordinates

X	Y	Z
9.9871	-16.0589	8.21986

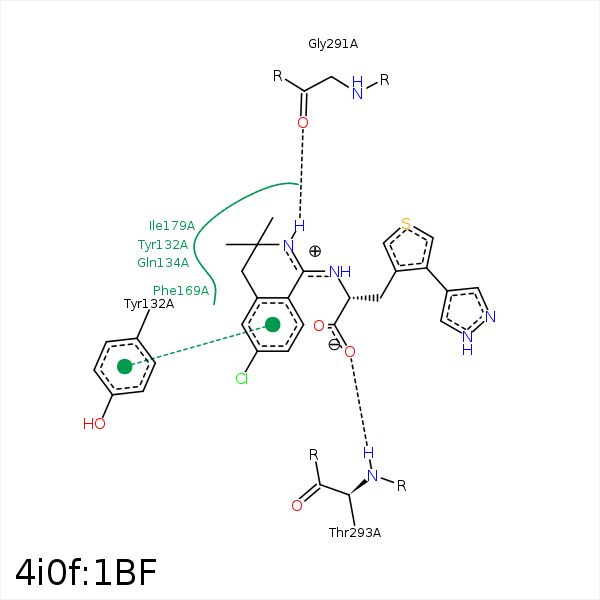

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C28	CD2	LEU- 91	3.89	0	Hydrophobic	false
C29	CD2	LEU- 91	3.64	0	Hydrophobic	false
S17	CD1	LEU- 91	3.83	0	Hydrophobic	false
C28	CB	ASP- 93	4.49	0	Hydrophobic	false
CL1	CD2	TYR- 132	3.82	0	Hydrophobic	false
C11	CE1	TYR- 132	3.41	0	Hydrophobic	false
C7	CD1	TYR- 132	3.46	0	Hydrophobic	false
C2	CB	TYR- 132	4.25	0	Hydrophobic	false
C3	CB	GLN- 134	4.05	0	Hydrophobic	false
C4	CG	GLN- 134	3.6	0	Hydrophobic	false
C2	CG	GLN- 134	3.61	0	Hydrophobic	false
N22	O	LYS- 168	3.49	143.67	H-Bond (Ligand Donor)	false
CL1	CD1	PHE- 169	3.78	0	Hydrophobic	false
C29	CE1	PHE- 169	4.15	0	Hydrophobic	false
N22	O	PHE- 169	3.17	123.62	H-Bond (Ligand Donor)	false
C29	CH2	TRP- 176	4.28	0	Hydrophobic	false
C28	CD1	ILE- 179	4.05	0	Hydrophobic	false
C29	CD1	ILE- 179	4.36	0	Hydrophobic	false
O26	N	THR- 293	2.86	172.14	H-Bond (Protein Donor)	false
C14	CB	THR- 293	4.49	0	Hydrophobic	false
